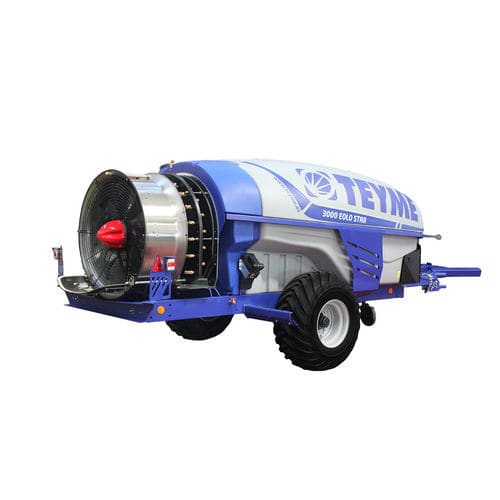

Trailed agricultural atomizer EOLO STAR series
for orchardscentrifugalwith diaphragm pump

trailed agricultural atomizer
trailed agricultural atomizer
trailed agricultural atomizer
trailed agricultural atomizer
trailed agricultural atomizer
Add to favorites
Compare this product


Characteristics

Mobility
trailed
Application
for orchards
Other characteristics
with diaphragm pump, centrifugal
Capacity

1,000 l, 1,500 l, 2,000 l, 3,000 l, 4,000 l
(264.2 gal, 396.3 gal, 528.3 gal, 792.5 gal, 1,056.7 gal)

Air flow

Min.: 31,100 m³/h
(1,098,286.1 ft³/h)

Max.: 99,200 m³/h
(3,503,214.9 ft³/h)

Description

The most technical air Low power consumption Huge air flow rate Ø915mm air unit with 3 channels Features of air unit PROPELLER Low consumption propeller.7 SICKLE-profile blades with variable pitch from 25º to 45º. TEYME’s patented special design. TURBO AUXILIARY CHANNEL Nº3 TURBO lower channel retrieves without extra consumption a 16,50% out of the air which in other sprayers is wasted, increasing its flow rate. GEAR BOX AND CLUTCH Gear box 2 speeds + neutral point Up until 70 hp. Centrifugal 3-shoes ZAMAK clutch with smooth and progressive starting. DEFLECTOR Deflector after suction in helical shape.It provides radial air with turbulences and uniform distribution 50 and 50%. BLOWER HOUSING WITH 3 CHANNELS Ø915mm X 350mm aerodynamic blower housing, galvanized monoblock sort. 3 channels (A, B and C). The channels’ system increases a 17% the air production . It prevents the faster upper air from bumping into the slower one of the central area. REGULATION BY SLIDING DEVICE To achieve the required air pressure, the width of the blower housing exit can be regulated by means of sliding device.
