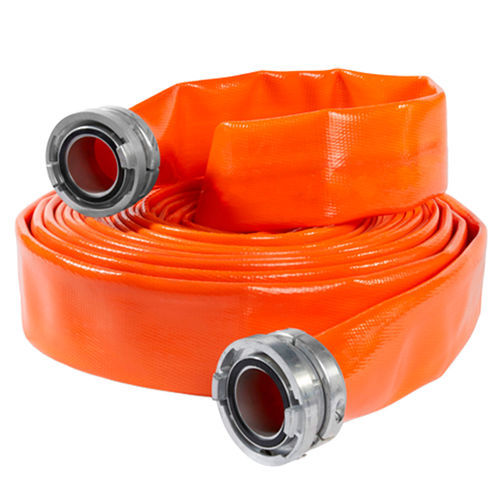

Drag hose OROFLEX™
flexibleirrigationmanure

drag hose
drag hose
drag hose
drag hose
drag hose
Add to favorites
Compare this product


Characteristics

Type
flexible
Applications
irrigation, manure, drag
Material
polyurethane
Other characteristics
flat
Diameter

Min.: 102 mm
(4.02 in)

Max.: 178 mm
(7.01 in)

Length

100 m, 200 m
(328'01" , 656'02" )

Description

Premium Quality Extruded TPU Lay Flat Hose -SPECIALLY DESIGNED FOR TRAVELLING IRRIGATORS -EXTREMELY LOW FRICTION LOSS -SUPERIOR BEND RADIUS AND KINK RESISTANCE -FOR EXTREME UV AND OZONE CONDITIONS Color: Green cover is the standard. Other colors are available upon request. Applications: Designed and recommended as a liquid manure drag hose, irrigation feeding line, traveling irrigator supply line, sludge injection, transport of compatible fluids (see chemical resistance chart), brackish and sea water and waste water transport. Construction: Made from circularly woven 100% high tenacity synthetic yarn, completely protected and locked-in by a tough, highly resistant thermoplastic polyurethane extruded through the weave, forming a single homogenous construction without the use of glues or adhesives. Its construction does not permit corrosion or scaling, while giving a high resistance against abrasion and cutting. Easy handling, storage & transport, which allows for fast installation and retrieval. 2% maximum hose elongation and 10% maximum hose expansion. Lining Properties: a. Ultimate Tensile Strength of the lining: Minimum guaranteed value of 40 MPa (5.800 psi). b. Ultimate Elongation: 500% minimum.
