Hose Oroflex HD

air distributionrubberpolyester sheath

Product type

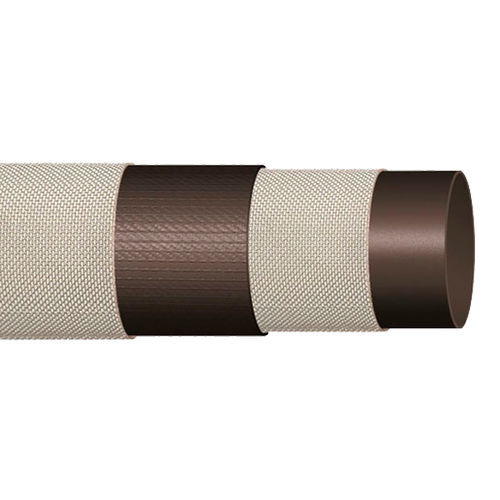

Synthetic rubber lay-flat hose Oroflex HD with double polyester textile reinforcement.

Applications
Hose for air compressors used in public works and civil engineering, compressors for drilling machinery, high-performance fluid pumps and other high-abrasion applications.

Temperature
-20°C to +80°C.

Available items / dimensions
Item | Code | Ø (mm) | WP (bar)
F231000A | 1501 | 52 | 40
F559108A | 1502 | 76 | 30
F551693A | 1503 | 102 | 25
F551729A | 1504 | 127 | 15
F551730A | 1505 | 152 | 15
F551731A | 1500 | 204 | 10

Technical features / specifications

• Material: synthetic rubber tube with double polyester textile reinforcement.
• Construction: lay-flat hose design.
• Operating temperature range: -20°C to +80°C.
• Typical applications: air compressors (public works, civil engineering), drilling machinery compressors, high-performance fluid transfer and abrasion-prone environments.
• Pressure/diameter options: see table for Item, Code, outer diameter (Ø mm) and working pressure (WP bar).
