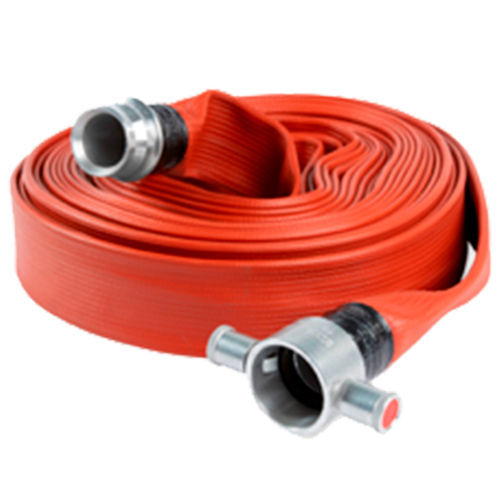

Hose Armtex Prime

supplyrubberPVC

Product name
Armtex Prime

Short description
Extruded rubber layflat fire hose Armtex Prime designed for firefighting with fast deployment and retrieval, abrasion resistance and ease of transport and handling. Manufactured to BS 6391 / type 3.

Key features

• Designed for firefighting applications
• Fast deployment and retrieval
• Manufactured to BS 6391 / type 3
• Ease of transportation and handling

Applications
Recommended for municipal and industrial fire departments, petrochemical and nuclear plants, naval use and other industrial services requiring layflat hose.

Construction
Circularly woven 100% high tenacity synthetic yarn fully encapsulated by a synthetic nitrile rubber and PVC blend extruded through the weave to form a homogeneous construction without glues or adhesives.

Lining properties

• Ultimate tensile strength (lining): minimum guaranteed 1750 psi (12,000 kPa)
• Ultimate elongation (lining): minimum 450%

Abrasion resistance
Tested to FM2111 and UL19 abrasion standards to extend hose life where abrasion is a primary concern.

Service temperature range
-4°F (-20°C) to 176°F (80°C). Special versions available for higher or lower temperatures.

Ozone resistance
No visible cracking of lining or cover when tested to ASTM D518 Procedure B, 100 pphm / 104°F (40°C).

Chemical resistance
Resistant to seawater and contamination by most chemicals, hydrocarbons, oils and greases; chemical compatibility chart available.

Heat resistance
Withstands surface temperature of 1112°F (600°C) for minimum two minutes without rupture or damage to synthetic reinforcement at static pressure of 100 psi (700 kPa).

Couplings
Available as requested by purchaser: NH-Rocker Lug, Storz, Guillemin, Barcelona, etc.

Lengths
Standard lengths: 50 ft (15 m), 100 ft (30 m), 200 ft (60 m). Special lengths: 330 ft (100 m), 660 ft (200 m).

Other information
Colors not specified on product page.

Characteristics / technical specifications

• Commercial name: Armtex Prime
• Product type: Extruded rubber layflat fire hose
• Standards: Manufactured to BS 6391 / type 3
• Reinforcement: Circularly woven 100% high tenacity synthetic yarn
• Cover/lining material: Synthetic nitrile rubber & PVC blend, extruded through the weave
• Ultimate tensile strength (lining): min. 1750 psi (12,000 kPa)
• Ultimate elongation (lining): min. 450%
• Service temperature range: -4°F (-20°C) to 176°F (80°C)
• Heat resistance: Withstands 1112°F (600°C) for min. 2 minutes at 100 psi (700 kPa)
• Abrasion resistance: Tested to FM2111 and UL19
• Ozone resistance: Tested to ASTM D518 Procedure B (100 pphm / 104°F / 40°C)
• Chemical resistance: Resistant to seawater, hydrocarbons, oils and greases; compatibility chart available
• Available lengths: 50 ft (15 m), 100 ft (30 m), 200 ft (60 m); special lengths 330 ft (100 m), 660 ft (200 m)
• Couplings: NH-Rocker Lug, Storz, Guillemin, Barcelona, etc.
