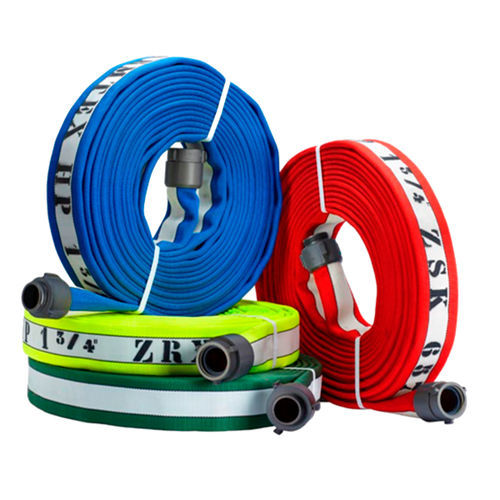

Hose Armtex HP

dischargerubberflat

Product summary
TIPSA’s most advanced structural firefighting attack line. Designed to provide reduced friction loss, excellent kink resistance and exceptional resistance to heat and abrasion, suitable for structural firefighting applications.

Key benefits

• Resists burn-through for a full minute* with perfect fit of outer jacket and inner tube
• Continuous nylon filament jacket with oversized inner jacket for increased water flow
• Lower friction loss than other double jacket hoses
• Exceptional heat and cut resistance

Construction
Composed of an outer jacket woven from 100% high tenacity synthetic yarn and an inner liner consisting of a one-piece extruded through-the-weave NBR rubber tube. This construction reduces friction loss and provides excellent kink resistance.

Burst Resistance
Will not burst catastrophically even with a puncture through both the outer jacket and liner.

Burn-Through Resistance
Capable of withstanding a surface temperature in excess of 1100° F for a minimum of one minute* at a static pressure of 100 psi, without damage or rupture to the synthetic reinforcement.

Cold Resistance
Cold resistant to -40° F.

Additional features

• Outstanding kink resistance
• Ideal for low pressure combination straight stream/fog nozzles
• Available as 1 3/4" attack line and 2 1/2" master flow line
• NFPA 1961 compliant
• 10 year warranty

Technical characteristics / specifications

• Product name: Armtex HP
• Outer jacket: woven from 100% high tenacity synthetic yarn
• Inner liner: one-piece extruded through-the-weave NBR rubber tube
• Designed to reduce friction loss and improve water flow
• Burn-through resistance: withstands >1100° F for a minimum of 1 minute at 100 psi (static)
• Burst behaviour: will not burst catastrophically after puncture through jacket and liner
• Cold resistance: down to -40° F
• Available sizes: 1 3/4" (attack line) and 2 1/2" (master flow line)
• Standards: NFPA 1961 compliant
• Warranty: 10 year warranty
