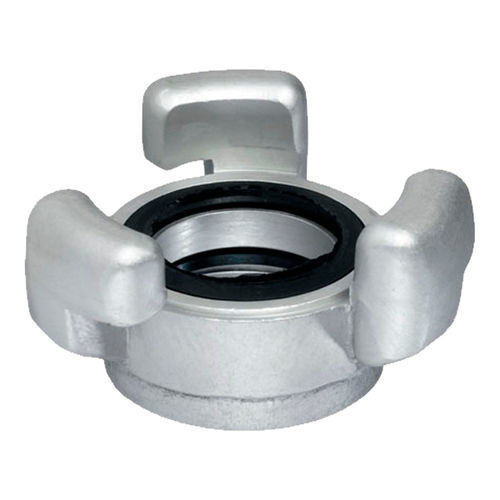

Threaded coupling I220700

female

Stamped aluminium
Item | Code | Ø (DN mm – Thread ")
I220700 — 9708 — 25mm – 3/4"
I220688 — 9297 — 25mm – 1"
I220694 — 7087 — 45mm – 1 1/2"
I220038C — 7101 — 70mm – 2 1/2"
I160013 — 7306 — 100mm – 4"

Type A brass
Item | Code | Ø (DN mm – Thread ")
I160020 — 7429 — 45mm – 1 1/2"
I160029 — 7451 — 70mm – 2 1/2"

Type T cast aluminium
Item | Code | Ø (DN mm – Thread ")
I160003 — 7280 — 45mm – 1 1/2"
I160007 — 7305 — 70mm – 2 1/2"

KUGEL
Item | Code | Ø (DN mm – Thread ")
I220060 — KRI34 — 25mm – 3/4"
I220061 — KRI1 — 25mm – 1"
I220693 — KRI112 — 45mm – 1 1/2"
I220066 — KRI212 — 70mm – 2 1/2"

Characteristics / technical specifications

• Product name: Barcelona couplings
• Thread type: fixed female thread
• Applicable standard: UNE 23.400
• Available constructions/materials: stamped aluminium; Type A brass; Type T cast aluminium; KUGEL
• Available nominal diameters and corresponding thread sizes: 25 mm (3/4", 1"); 45 mm (1 1/2"); 70 mm (2 1/2"); 100 mm (4")
• Multiple item codes available per material/size for ordering and reference (see tables above)
