Coupling I160004

Product

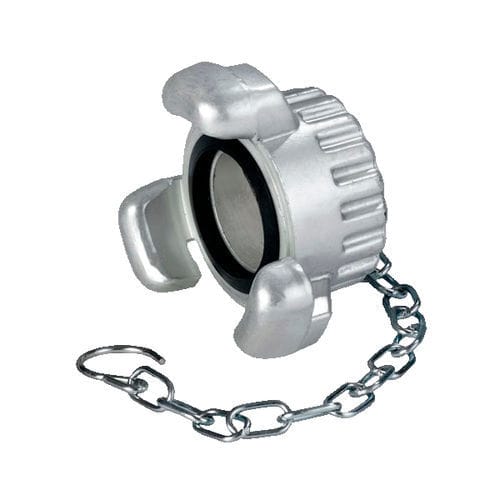

Cap for Barcelona coupling (UNE 23.400).

Type T — cast aluminium
Item | Code | Ø (mm)
I160004 | 7338 | 45
I160008 | 7349 | 70

Stamped aluminium
Item | Code | Ø (mm)
I220041 | 12156 | 25
I220042 | 7134 | 45
I220043 | 7145 | 70
I160014 | 7350 | 100

Type A — brass
Item | Code | Ø (mm)
I160022 | 7531 | 45
I160031 | 7553 | 70

KUGEL
Item | Code | Ø (mm)
I220067 | KY25 | 25
I220068 | KT45 | 45
I220069 | KT70 | 70

Technical characteristics

• Product family: Barcelona couplings – cap
• Standard: UNE 23.400
• Available materials: cast aluminium (Type T), stamped aluminium, brass (Type A), KUGEL variants
• Available KUGEL codes: KY25, KT45, KT70
• Available diameters (Ø): 25 mm, 45 mm, 70 mm, 100 mm
• Reference items and product codes correspond to specific material/type and diameter combinations listed above
