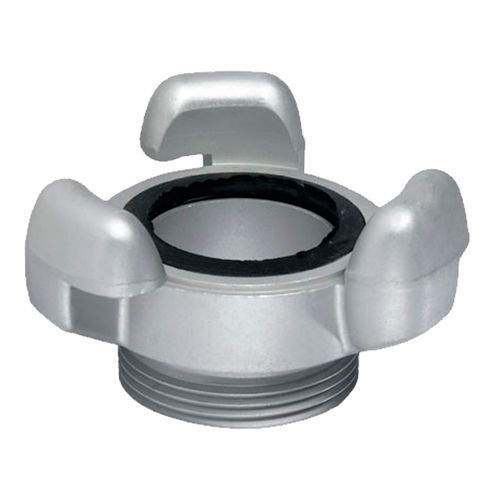

Threaded coupling I220689

male

Product
Barcelona couplings – fixed male thread (UNE 23.400)

Stamped Aluminium
Item | Code | Ø (DN mm – Thread ")
I220689 | 9606 | 25mm – 3/4"
I220690 | 9286 | 25mm – 1"
I220701 | 7112 | 45mm – 1 1/2"
I220024 | 48260 | 45mm – 2"
I220027C | 15529 | 70mm – 2"
I220028C | 7123 | 70mm – 2 1/2"
I160011 | 7328 | 100mm – 4"

Type A brass
Item | Code | Ø (DN mm – Thread ")
I160018 | 7473 | 45mm – 1 1/2"
I160026 | 7509 | 70mm – 2 1/2"

Type T cast aluminium
Item | Code | Ø (DN mm – Thread ")
I160002 | 7316 | 45mm – 1 1/2"
I160006 | 7327 | 70mm – 2 1/2"

KUGEL
Item | Code | Ø (DN mm – Thread ")
I220051 | KRE34 | 25mm – 3/4"
I220691 | KRE1 | 25mm – 1"
I220696 | KRE112 | 45mm – 1 1/2"
I220697 | KRE212 | 70mm – 2 1/2"
I220704 | – | Semireductor : 70mm RE – 1 1/2"

Characteristics / technical specifications

• Standard: UNE 23.400
• Materials available: stamped aluminium; Type A brass; Type T cast aluminium; KUGEL
• Available diameters / threads: 25mm – 3/4"; 25mm – 1"; 45mm – 1 1/2"; 45mm – 2"; 70mm – 2"; 70mm – 2 1/2"; 100mm – 4"
• Product variants and item codes are listed in the tables above (Item / Code correspondences)
• Special options: KUGEL semi-reducer (70mm RE – 1 1/2")
