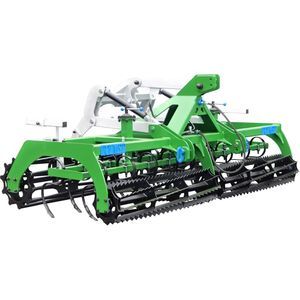

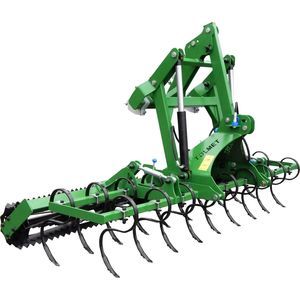

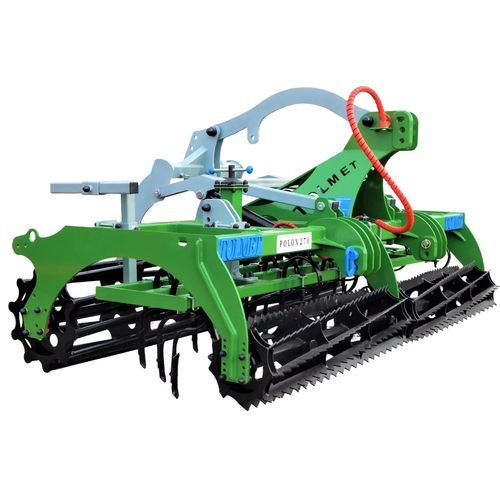

Mounted field cultivator POLON series

for seed drillssoil looseningspring tine

Standard equipment: - Three rows of adjustable spring Jackpot-type tines - Reinforced hitch - Front string roller Ø 440mm - Rear, tubular roller with bearing Ø 510mm or string roller Ø 350mm, for breaking up soil clods - Two-acting hydropack with adjustable working speed - Universal seed drill hitch (spacing 720 mm or 840 mm) - Two points for additional soil ripping - Seed drill supports Optional equipment: - Automatic draw bar - Route lights - Optional rollers (see table below) Model specifications: - POLON 250: Width 2.5 m, 14 tines, Weight 850 kg, Required power 70-90 HP - POLON 270: Width 2.7 m, 16 tines, Weight 960 kg, Required power 80-110 HP - POLON 300: Width 3.0 m, 19 tines, Weight 1040 kg, Required power 100-130 HP - POLON 400: Width 4.0 m, 25 tines, Weight 1380 kg, Required power 120-150 HP Information about the rollers: - Tubular Ø 510 mm - String Ø 350 mm - Ring Ø 500 mm - V Ring Ø 500 mm - V Ring-bar Ø 500 mm - Packer Ø 510 mm - Crosskill Ø 380 mm and Ø 550 mm Technical characteristics / specifications: - Available working widths: 2.5 m, 2.7 m, 3.0 m, 4.0 m - Number of tines: 14 (2.5 m), 16 (2.7 m), 19 (3.0 m), 25 (4.0 m) - Weight: 850 kg (2.5 m), 960 kg (2.7 m), 1040 kg (3.0 m), 1380 kg (4.0 m) - Required tractor power: 70-90 HP (2.5 m), 80-110 HP (2.7 m), 100-130 HP (3.0 m), 120-150 HP (4.0 m) - Standard and optional rollers: Tubular, String, Ring, V Ring, V Ring-bar, Packer, Crosskill (Ø 380 mm and Ø 550 mm)
