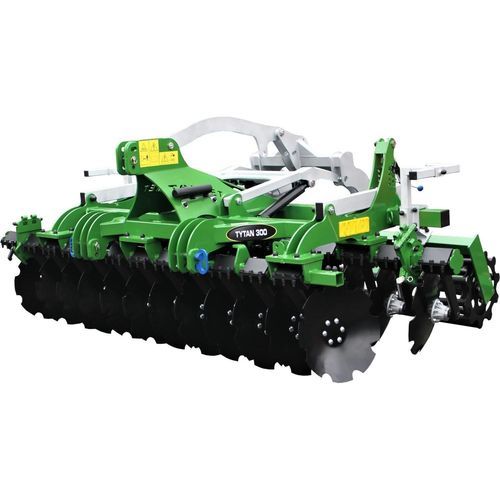

Towed disc harrow TYTAN series

with hydraulic adjustmentwith rollerfoldable

Standard equipment: - welded hub, - two disc rows of discs with rubber shock absorption, - distance between discs: 650 mm, - 560 mm discs with maintenance-free hubs on cone bearings, - rear, tubular roller with bearing Ø 510mm or string roller Ø 440mm, - universal seed drill hitch (spacing 720 mm or 840 mm), - foldable, adjustable side discs. Optional equipment: - screwed hub, disc Ø 560 mm - slidable discs, - side screens, - floating side screens, - automatic draw bar, - hydraulic working depth adjustment, - route lights, - optional rollers (see table below). Model specifications: - Tytan 250: Width 2.5m, 18 discs, Weight 1200kg, Power 80-100 HP - Tytan 270: Width 2.7m, 22 discs, Weight 1270kg, Power 100-120 HP - Tytan 300: Width 3.0m, 24 discs, Weight 1320kg, Power 110-130 HP - Tytan 400: Width 4.0m, 32 discs, Weight 1850kg, Power 150-170 HP Information about the rollers: - Tubular: Ø 510 mm, Ø 600 mm - String: Ø 440 mm, Ø 520 mm - V String: Ø 500 mm, Ø 600 mm - V Ring bar: Ø 500 mm, Ø 600 mm - Ring: Ø 500 mm - Channel bar: Ø 520 mm, Ø 600 mm - Tee-bar: Ø 600 mm - Packer: Ø 510 mm - Crosskill: Ø 380 mm, Ø 550 mm - Disc: Ø 600 mm - Rubber: Ø 500 mm - Spiral: Ø 500 mm Brand: Tolmet Model: TYTAN Category: Combined cultivator and seed drill Standard and optional equipment listed above Available roller types and sizes as per table
