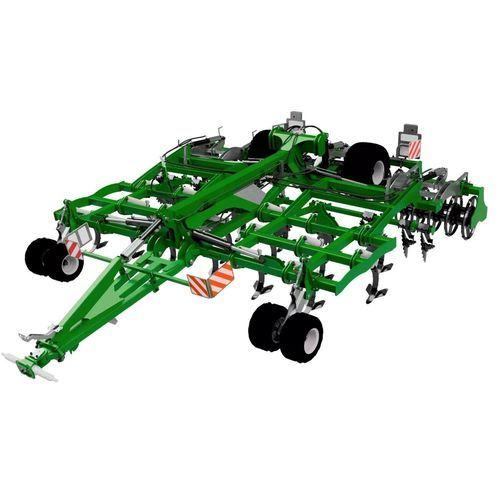

Towed field cultivator DELTA

foldingwith hydraulic adjustment

Standard equipment: - Three beam rows on spring safeguard - Hydraulic working depth adjustment - Maximum working depth: with lateral shares up to 15 cm, without shares up to 30 cm - Independent adjustment of the levelling discs (Ø 460 mm) - Levelling discs with rubber shock absorption - Tandem roller V Ring with closed profile (Ø 600 mm) - Transport wheels in the centre - Double beam wheels - Automatic hydraulic latch - Floating drawbar Optional equipment: - Route lights - Working elements – sintered carbide - Padded working elements - Towbar eye 40 mm - Towbar eye 51 mm - Towbar eye K80 - Rollers: channel-bar tandem Ø 500mm, tee-bar tandem Ø 600mm Model specifications: Delta 420: Width 4.2 m, 14 tines, 12 discs, Weight 6000 kg, Power 210-250 HP Delta 480: Width 4.8 m, 16 tines, 14 discs, Weight 6500 kg, Power 240-280 HP Delta 540: Width 5.4 m, 18 tines, 16 discs, Weight 7000 kg, Power 270-310 HP Information about the rollers: - V Ring bar Ø 500 mm: ✔ - V Ring bar Ø 600 mm: ✔ - Channel-bar tandem Ø 520 mm: ✔ - Tee-bar tandem Ø 600 mm: ✔ Technical characteristics / specifications: - Hydraulically folded cultivator - Available working widths: 4.2 m, 4.8 m, 5.4 m - Number of tines: 14 (4.2 m), 16 (4.8 m), 18 (5.4 m) - Number of discs: 12 (4.2 m), 14 (4.8 m), 16 (5.4 m) - Weight: 6000 kg (4.2 m), 6500 kg (4.8 m), 7000 kg (5.4 m) - Required power: 210-250 HP (4.2 m), 240-280 HP (4.8 m), 270-310 HP (5.4 m) - Levelling discs diameter: 460 mm - Roller options: V Ring bar (Ø 500/600 mm), Channel-bar tandem (Ø 520 mm), Tee-bar tandem (Ø 600 mm)
