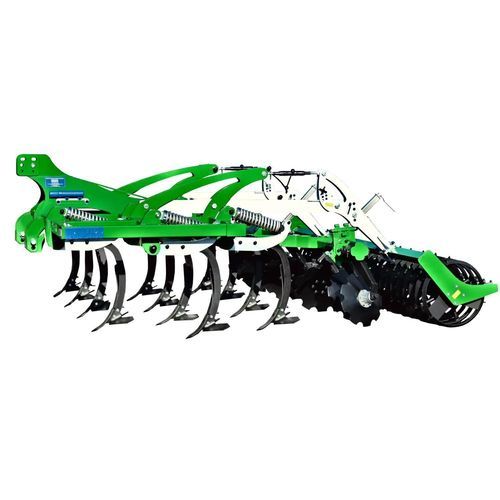

Mounted field cultivator Delta/Kret 240

foldingwith hydraulic adjustmentmanual adjustment

Standard equipment: - Working elements on spring safeguard of Kongskilde (Delta) or Horsch (Kret) type - Maximum working depth: with lateral shares up to 15 cm, without shares up to 30 cm - Reinforced hitch - Ø 440mm string roller or Ø 510mm tubular roller - Manual working depth adjustment - Independent manual adjustment of levelling discs - Rubber shock absorption for rollers - Folding and angle adjustment for extreme discs Optional equipment: - Route lights - Hydraulic working depth adjustment - Working elements – sintered carbide - Padded working elements - Optional rollers (see table below) Model specifications: - Delta/Kret 240: 2.4 m width, 8 tines, 6 discs, 1500 kg, 110-130 HP - Delta/Kret 270: 2.7 m width, 9 tines, 7 discs, 1650 kg, 120-130 HP - Delta/Kret 300: 3.0 m width, 10 tines, 8 discs, 1800 kg, 140-160 HP - Delta/Kret 360: 3.6 m width, 12 tines, 10 discs, 2150 kg, 150-210 HP - Delta/Kret 420 (hydraulically folded): 4.2 m width, 14 tines, 12 discs, 2900 kg, 160-225 HP - Delta/Kret 480 (hydraulically folded): 4.8 m width, 16 tines, 14 discs, 3400 kg, 240-330 HP Information about the rollers: - Pipe: Ø 510 mm / Ø 600 mm - String: Ø 440 mm / Ø 520 mm - V Ring: Ø 500 mm / Ø 600 mm - V Ring-bar: Ø 500 mm / Ø 600 mm - Ring: Ø 500 mm - Channel bar: Ø 520 mm / Ø 600 mm - Tee-bar: Ø 600 mm - Disc: Ø 600 mm - Rubber: Ø 500 mm - Spiral: Ø 500 mm - Roof tandem: Ø 500 mm / Ø 600 mm - Roof tandem from shape-bar: Ø 500 mm / Ø 600 mm - String tandem: Ø 440 mm - String and pipe tandem: Ø 440 mm - Channel-bar tandem: Ø 520 mm - Tee-bar tandem: Ø 600 mm - Mulching tandem: Pipe Ø 140 mm / Pipe Ø 270 mm - Ring tandem: Ø 500 mm Technical characteristics / specifications: - Model: DELTA/KRET - Available working widths: 2.4 m, 2.7 m, 3.0 m, 3.6 m, 4.2 m (hydraulic), 4.8 m (hydraulic) - Number of tines: 8 to 16 depending on model - Number of discs: 6 to 14 depending on model - Weight: 1500 kg to 3400 kg depending on model - Required power: 110-330 HP depending on model - Roller types: Pipe, String, V Ring, V Ring-bar, Ring, Channel bar, Tee-bar, Disc, Rubber, Spiral, Roof tandem, String tandem, Mulching tandem, Ring tandem - Manual or hydraulic working depth adjustment - Spring safeguard tines - Levelling discs with independent adjustment - Rubber shock absorption for rollers
