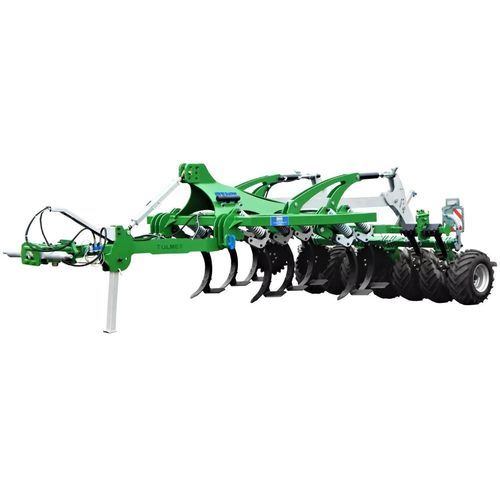

Mounted field cultivator Delta/Kret 270

foldingwith hydraulic adjustmentmanual adjustment

Standard equipment: - Working elements on spring safeguard of Kongskilde (Delta) or Horsch (Kret) type - Maximum working depth: with lateral shares up to 15 cm, without shares up to 30 cm - Reinforced hitch - Tyre roller (wheel 26×12-12) - Hydraulic working depth adjustment - Independent manual adjustment of levelling discs - Rubber shock absorption for rollers - Folding and angle adjustment for extreme Optional equipment: - Route lights - Working elements – sintered carbide - Padded working elements Model specifications: Delta/Kret 240: Width 2.4 m, 8 tines, 6 discs, 1700 kg, 110-130 HP Delta/Kret 270: Width 2.7 m, 9 tines, 7 discs, 1850 kg, 120-130 HP Delta/Kret 300: Width 3.0 m, 10 tines, 8 discs, 2000 kg, 140-160 HP Delta/Kret 360: Width 3.6 m, 12 tines, 10 discs, 2350 kg, 150-210 HP Delta/Kret 420 (hydraulically folded): Width 4.2 m, 14 tines, 12 discs, 3100 kg, 160-225 HP Delta/Kret 480 (hydraulically folded): Width 4.8 m, 16 tines, 14 discs, 3600 kg, 240-330 HP Information about the rollers: - Tyre: 26X12-12 Technical characteristics / specifications: - Spring safeguard working elements (Kongskilde/Horsch type) - Max working depth: 15 cm (with lateral shares), 30 cm (without shares) - Reinforced hitch - Tyre roller: 26×12-12 - Hydraulic working depth adjustment - Manual adjustment of levelling discs - Rubber shock absorption for rollers - Folding and angle adjustment - Optional: route lights, sintered carbide working elements, padded working elements - Model widths: 2.4 m to 4.8 m (hydraulic folding for 4.2 m and 4.8 m) - Number of tines: 8 to 16 - Number of discs: 6 to 14 - Weight: 1700 kg to 3600 kg - Required power: 110-330 HP
