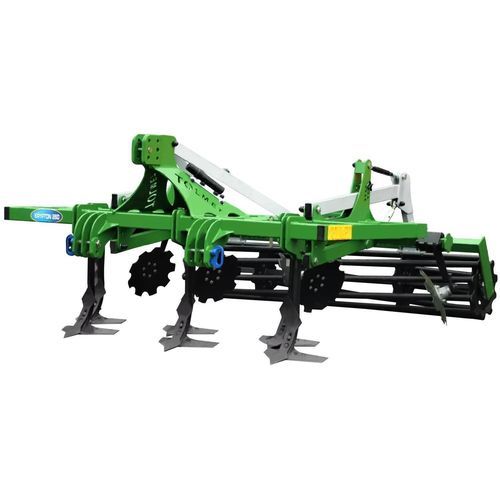

Mounted field cultivator KRYPTON series

with hydraulic adjustmentmanual adjustmentwith roller

Standard equipment: - Beams – pin safeguard - Reinforced hitch (II and III category) - Tubular roller Ø 510mm or string roller Ø 440mm - Manual working depth adjustment - Levelling discs with rubber shock absorption Optional equipment: - Hydraulic working depth adjustment - Automatic draw bar - Lemken-type working elements - Route lights - Optional rollers (see table below) Model specifications: Krypton 180: 1.8m width, 4 beams, 5 discs, 740kg, 60-75 HP Krypton 220: 2.2m width, 5 beams, 6 discs, 890kg, 70-90 HP Krypton 260: 2.6m width, 6 beams, 7 discs, 1020kg, 80-100 HP Krypton 300: 3.0m width, 7 beams, 8 discs, 1140kg, 90-120 HP Information about the rollers: - Pipe: Ø 510 mm, Ø 600 mm - String: Ø 440 mm, Ø 520 mm - V Ring: Ø 500 mm, Ø 600 mm - V Ring bar: Ø 500 mm, Ø 600 mm - Ring: Ø 500 mm - Channel-bar: Ø 520 mm, Ø 600 mm - Tee-bar: Ø 600 mm - Disc: Ø 600 mm - Rubber: Ø 500 mm - Spiral: Ø 500 mm - V Ring tandem: Ø 500 mm, Ø 600 mm - V Ring-bar tandem: Ø 500 mm, Ø 600 mm - String tandem: Ø 440 mm - String-pipe tandem: Ø 440 mm / Ø 510 mm - Channel-bar tandem: Ø 520 mm - Tee-bar tandem: Ø 600 mm - Mulching tandem: Pipe Ø 140 mm, Pipe Ø 270 mm Technical characteristics / specifications: - Model: Krypton 180, 220, 260, 300 - Working width: 1.8 m, 2.2 m, 2.6 m, 3.0 m - Number of beams: 4, 5, 6, 7 - Number of discs: 5, 6, 7, 8 - Weight: 740 kg, 890 kg, 1020 kg, 1140 kg - Required power: 60-75 HP, 70-90 HP, 80-100 HP, 90-120 HP - Standard and optional rollers available (see table above)
