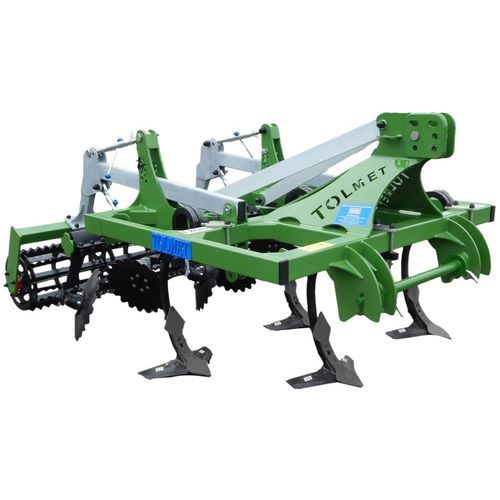

Mounted field cultivator ARSEN series

with hydraulic adjustmentmanual adjustmentwith roller

Standard equipment: - Beams – spiral safeguard - Reinforced hitch (II and III category) - Tubular roller Ø 510mm or string roller Ø 440mm - Manual working depth adjustment - Levelling discs with rubber shock absorption Optional equipment: - Hydraulic working depth adjustment - Automatic draw bar - Lemken-type working elements - Route lights - Optional rollers (see table below) Model specifications: - Arsen 180: Width 1.8m, 4 tines, 5 discs, Weight 740kg, Power 60-75 HP - Arsen 220: Width 2.2m, 5 tines, 6 discs, Weight 890kg, Power 70-90 HP - Arsen 260: Width 2.6m, 6 tines, 7 discs, Weight 1020kg, Power 80-100 HP - Arsen 300: Width 3.0m, 7 tines, 8 discs, Weight 1140kg, Power 90-120 HP Information about the rollers: - Pipe: Ø 510 mm, Ø 600 mm - String: Ø 440 mm, Ø 520 mm - V Ring: Ø 500 mm, Ø 600 mm - V Ring bar: Ø 500 mm, Ø 600 mm - Ring: Ø 500 mm - Channel-bar: Ø 520 mm, Ø 600 mm - Tee-bar: Ø 600 mm - Disc: Ø 600 mm - Rubber: Ø 500 mm - Spiral: Ø 500 mm - V Ring tandem: Ø 500 mm, Ø 600 mm - String tandem: Ø 500 mm, Ø 600 mm - Tandem string: Ø 440 mm - V Ring-bar tandem: Ø 440 mm, Ø 510 mm - Channel-bar tandem: Ø 520 mm - Tee-bar tandem: Ø 600 mm - Mulching tandem: pipe Ø 140 mm, pipe Ø 270 mm Technical characteristics / specifications: - Standard and optional equipment as listed above - Available working widths: 1.8 m, 2.2 m, 2.6 m, 3.0 m - Number of tines: 4 (1.8 m), 5 (2.2 m), 6 (2.6 m), 7 (3.0 m) - Number of discs: 5 (1.8 m), 6 (2.2 m), 7 (2.6 m), 8 (3.0 m) - Weight (kg): 740 (1.8 m), 890 (2.2 m), 1020 (2.6 m), 1140 (3.0 m) - Required power (HP): 60-75 (1.8 m), 70-90 (2.2 m), 80-100 (2.6 m), 90-120 (3.0 m) - Multiple roller types and diameters available (see table above)
