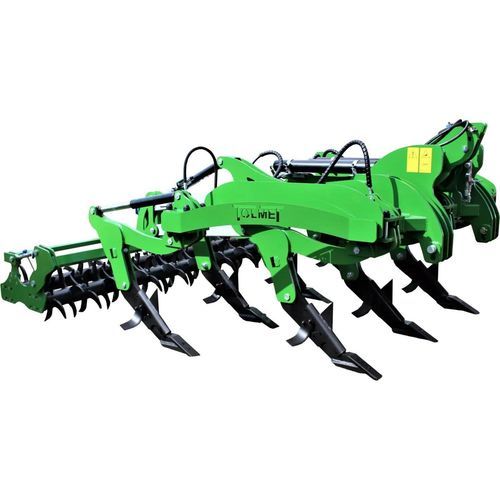

5-shank subsoiler RAPTOR series

with hydraulic adjustmentwith rollerreinforced

Standard equipment: - Reinforced mulching roller (on Ø 270mm pipe) - Chisels from an Italian AMA manufacturer with interchangeable working elements - Safeguard – blind pin - Working depth down to 60 cm - Chisel thickness 35 mm (I Ripper chisel type) - Roller hydraulic system - Roller self-levelling - III category hitch Optional equipment: - Route lights - Hydraulic safeguard (hydraulic accumulators) Model specifications: Raptor 255: 2.5 m width, 5 working elements, 2200 kg, 150-180 HP Raptor 307: 3.0 m width, 7 working elements, 2500 kg, 210-250 HP Information about the rollers: - Tandem mulching roller: Ø 270 mm Technical characteristics / specifications: - Mulching roller diameter: Ø 270 mm - Chisel thickness: 35 mm (I Ripper type) - Working depth: up to 60 cm - Roller hydraulic system and self-levelling - III category hitch - Standard and optional equipment as listed above - Model variants: Raptor 255 (2.5 m, 5 working elements, 2200 kg, 150-180 HP), Raptor 307 (3.0 m, 7 working elements, 2500 kg, 210-250 HP)
