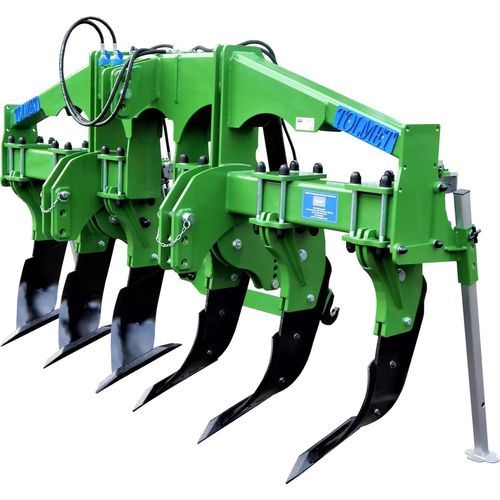

4-shank subsoiler MICHEL series

6-shankwith hydraulic adjustmentwith roller

Standard equipment: - Beams from an Italian AMA manufacturer with interchangeable working elements - Safeguard – blind pin - Working depth down to 60 cm - Points - Slidable beams Optional equipment: - Route lights - Roller adapter - Rear three-point draw-bar Model specifications: Michel 4: - Width: 3.0 m - Working elements: 4 - Weight: 1100 kg - Required power: 120-140 HP Michel 6: - Width: 3.0 m - Working elements: 6 - Weight: 1250 kg - Required power: 150-180 HP Michel 8: - Width: 4.0 m - Working elements: 7 - Weight: 1500 kg - Required power: 200-250 HP Information about the rollers: - Tubular: Ø 510 mm, Ø 600 mm - String: Ø 440 mm, Ø 520 mm - Mulching tandem: pipe Ø 140 mm, pipe Ø 270 mm Technical characteristics / specifications: - Standard equipment: beams from Italian AMA manufacturer, safeguard – blind pin, working depth down to 60 cm, points, slidable beams - Optional equipment: route lights, roller adapter, rear three-point draw-bar - Model variants: Michel 4, Michel 6, Michel 8 - Working widths: 3.0 m (Michel 4, Michel 6), 4.0 m (Michel 8) - Number of working elements: 4 (Michel 4), 6 (Michel 6), 7 (Michel 8) - Weight: 1100 kg (Michel 4), 1250 kg (Michel 6), 1500 kg (Michel 8) - Required power: 120-140 HP (Michel 4), 150-180 HP (Michel 6), 200-250 HP (Michel 8) - Roller types: Tubular (Ø 510 mm, Ø 600 mm), String (Ø 440 mm, Ø 520 mm), Mulching tandem (pipe Ø 140 mm, pipe Ø 270 mm)
