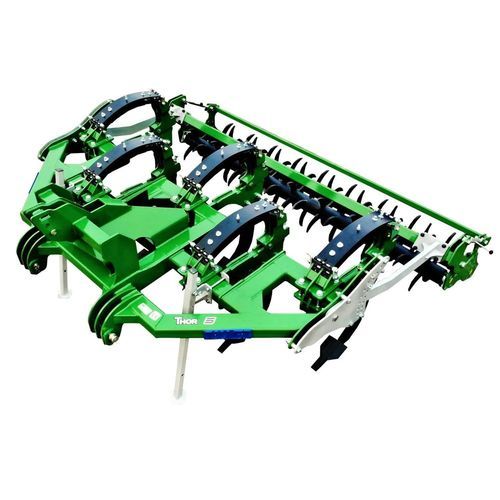

3-shank subsoiler THOR - RESOR

4-shank5-shankwith roller

Standard equipment: - Solid frame made of 140x100x8 mm profile - Beams on suspension sprint safeguard – double suspension spring, 7-leaf - Reinforced hitch - Working depth down to 60 cm - Slidable beams Optional equipment: - Hydraulic working depth adjustment - Route lights - Optional rollers (see table below) Model specifications: - Thor 3 zęby: 2.5 m, 3 working elements, 1000 kg, 90-120 HP - Thor 4 zęby: 2.5 m, 4 working elements, 1100 kg, 120-150 HP - Thor 5 zębów: 3.0 m, 5 working elements, 1300 kg, 150-180 HP Information about the rollers: - Tubular: Ø 510 mm, Ø 600 mm - String: Ø 440 mm, Ø 520 mm - Mulching tandem: pipe Ø 140 mm, pipe Ø 270 mm Technical characteristics / specifications: - Frame: 140x100x8 mm profile - Suspension: double spring, 7-leaf - Reinforced hitch - Working depth: up to 60 cm - Slidable beams - Hydraulic working depth adjustment (optional) - Route lights (optional) - Available rollers: Tubular (Ø 510 mm, Ø 600 mm), String (Ø 440 mm, Ø 520 mm), Mulching tandem (pipe Ø 140 mm, pipe Ø 270 mm) - Model variants: Thor 3 zęby (2.5 m, 3 working elements, 1000 kg, 90-120 HP), Thor 4 zęby (2.5 m, 4 working elements, 1100 kg, 120-150 HP), Thor 5 zębów (3.0 m, 5 working elements, 1300 kg, 150-180 HP)
