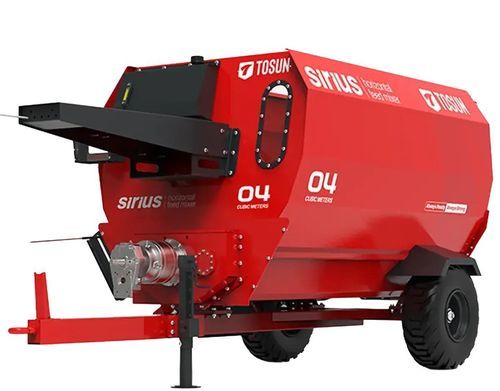

Horizontal mixing wagon SIRIUS

tractor-mounted2-augerwith weighing system

Overview
SIRIUS is a horizontal auger feed mixer engineered to deliver homogeneous mixing while preventing feed accumulation at the bottom. Its patented body geometry combined with a double horizontal auger system chops and circulates material efficiently. Special alloy knives mix feed without crushing, helping preserve nutrients and improve feed quality. The overall design reduces fuel consumption and tractor wear.

Key features

• Thorough mixing with patented body: double horizontal augers and specially designed knives prevent feed settling.
• Mixing without crushing: alloy blade design preserves nutritional value and improves feed consistency.
• Reduced energy demand: optimized design lowers fuel consumption and tractor load.

Available capacities

• 4 m³
• 6 m³
• 8 m³
• 10 m³
• 12 m³
• 14 m³
• 16 m³

Technical table
Capacity - 4 m³ - 6 m³ - 8 m³ - 10 m³ - 12 m³ - 14 m³ - 16 m³
Empty Weight - 1740 kg - 2700 kg - 3480 kg - 4000 kg - 4220 kg - 4500 kg - 4900 kg
Wagon Width - 1.42 m - 1.50 m - 1.86 m - 1.86 m - 1.86 m - 1.90 m - 2.00 m
Wagon Height - 1.37 m - 1.69 m - 2.10 m - 2.10 m - 2.10 m - 2.00 m - 2.10 m
Wagon Length - 2.57 m - 3.00 m - 3.00 m - 3.50 m - 4.00 m - 4.50 m - 5.00 m
Total Width - 1.80 m - 1.92 m - 2.22 m - 2.22 m - 2.22 m - 2.25 m - 2.25 m
Total Height - 1.90 m - 2.25 m - 2.71 m - 2.71 m - 2.71 m - 2.72 m - 2.72 m
Total Length - 4.65 m - 4.75 m - 5.35 m - 5.99 m - 6.31 m - 6.75 m - 7.25 m
Min. Power Requirement - 40 Hp - 50 Hp - 60 Hp - 65 Hp - 70 Hp - 80 Hp - 85 Hp
Required PTO Speed - 540 Rpm - 540 Rpm - 540 Rpm - 540 Rpm - 540 Rpm - 540 Rpm - 540 Rpm
Tire Sizes - 10/80-12 - 10/75-15.3 - 12.5/80-15.3 - 12.5/80-15.3 - 12.5/80-15.3 - 400/60-15.5 - 400/60-15.5
Base Plate Thickness - 8 mm - 10 mm - 10 mm - 10 mm - 10 mm - 10 mm - 10 mm
Chopper System (Axe/Star) - 32 / 32 - 36 / 64 - 16 / 60 - 24 / 80 - 32 / 96 - 36 / 104 - 48 / 128
Power Transmission - Gearbox - Gearbox - Gearbox - Gearbox - Gearbox - Gearbox - Gearbox
Auger System - Double / Horizontal - Double / Horizontal - Double / Horizontal - Double / Horizontal - Double / Horizontal - Double / Horizontal - Oil Tank
Conveyor Belt - Standard - Standard - Standard - Standard - Standard - Standard - Hydraulic
Jack - Manual - Hydraulic - Hydraulic - Hydraulic - Hydraulic - Hydraulic - Standard
Loading Bucket - Standard - Standard - Standard - Standard - Standard - Standard - Standard
Weighing System - Optional - Optional - Optional - Optional - Optional - Optional - Optional
Double Discharge - Optional - Optional - Optional - Optional - Optional - Optional - Optional
Observation Window - Standard - Standard - Standard - Standard - Standard - Standard - Standard

Technical specifications

• Model name: SIRIUS (horizontal auger feed mixer)
• Available capacities: 4, 6, 8, 10, 12, 14, 16 m³
• Empty weights by capacity: 4 m³ = 1740 kg; 6 m³ = 2700 kg; 8 m³ = 3480 kg; 10 m³ = 4000 kg; 12 m³ = 4220 kg; 14 m³ = 4500 kg; 16 m³ = 4900 kg
• Wagon dimensions (W×H×L) vary by capacity (see technical table above)
• Total dimensions and lengths are capacity-dependent (see technical table above)
• Minimum tractor power required by capacity: from 40 Hp (4 m³) up to 85 Hp (16 m³)
• Required PTO speed: 540 Rpm for all capacities
• Tire sizes vary by capacity (listed in table)
• Base plate thickness: 8 mm (4 m³) and 10 mm for larger capacities
• Chopper system variants provided per capacity (axe/star counts listed in table)
• Power transmission: gearbox
• Auger system: double horizontal augers (oil tank on largest capacity)
• Conveyor belt: standard on most models; hydraulic on largest model
• Jack: manual on smallest model, hydraulic on most medium models, standard on largest listed
• Loading bucket: standard across all capacities
• Weighing system: optional
• Double discharge: optional
• Observation window: standard
