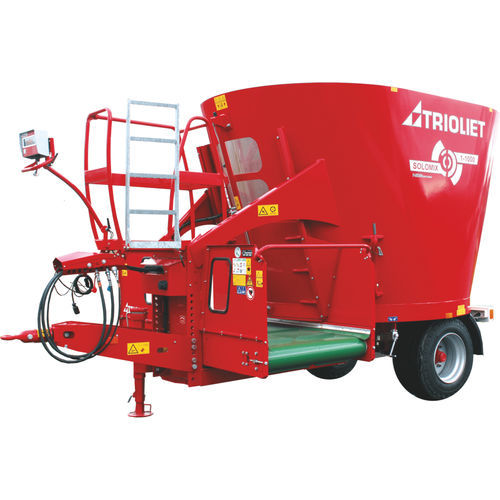

Vertical mixing wagon Solomix 1 VLH

towedside dischargesingle-auger

The Solomix 1 VLH-B is a compact diet feeder, featuring a single vertical auger and a cross conveyor belt (B) in the front. The mixer wagon is also available with a curved (C) cross conveyor chain (K). This trailed feed mixer is suitable for both large and small scale livestock breeders and is available in volumes from 8 - 14 m³. The Trioform auger knives are mounted at horizontal position on the auger flighting. This ensures an optimum cutting performance with less resistance in the feed (fuel saving). The patented Trioform auger knives are self-sharpening and the special shape lead up to a higher strength and long life. Its specific characteristics and high quality make the mixer feeder wagon unique, efficient and very easy to work with. Standard features •1 Twin Stream auger (15 mm flighting/18 mm wings) •2 Restrictor blades •Two wide single wheels •Wide-angle PTO shaft •Adjustable and reversible drawbar for top connection with 40 mm drawbar eye (European standard) •Control by bowden cable •Wear ring •With hydraulic brakes •Trioform auger knives short •Tub, auger(s), chassis and wear ring out of St. 52
