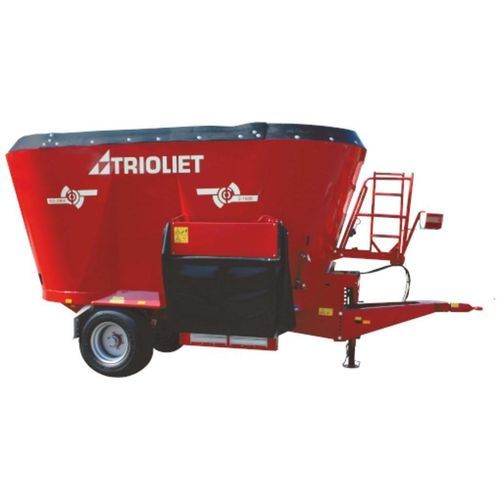

Vertical mixing wagon Solomix 2 ZK

towedside discharge2-auger

Product description
The Solomix 2 ZK is a compact trailed feed mixer with two vertical Long Life Twin Stream augers and hydraulic side discharge slides. Designed for mixed and specialised livestock operations, it is offered in capacities from 430 to 1000 cu.ft and in several height and discharge configurations (including front VL or rear AL variants). Options include ZK-T walking tandem axle versions for improved stability and load distribution.

Attributes

• Capacity: 430–1000 cu.ft (model dependent)
• Discharge type: Side discharge doors (ZK) with hydraulic slide on both sides
• Model: Trailed, with ZK-T walking tandem axle variants
• PTO options: 540 or 540/1000 RPM depending on model; tractor power requirement ~82–140 HP (60–103 kW)

Standard features

• Two Long Life Twin Stream augers (22 mm fighting / 25 mm wings)
• Two side discharge doors with rounded edges for efficient unloading
• Manual adjustable discharge chutes and flexible side door covers
• Two restrictor blades and Trioform auger knives (short)
• Hydraulic brakes; hydraulic brake system with parking brake on ZK-T
• Wide-angle PTO shaft with 1 3/8"-6 profile
• Two large single wheels or walking tandem axle with four single wheels (ZK-T)
• Adjustable and reversible drawbar with 40 mm drawbar eye (European standard)
• Window in front of the mixing tub for visibility
• Direct operation by tractor hydraulics; wear ring protection
• New platform with stairs and windows; height-adjustable arm for weighing indicator
• Protection and cover for hydraulic hoses and wiring with storage provision

Technical specifications — Solomix 2 ZK (overview)

• Model range: 1200–2800 series (capacity 430–1000 cu.ft)
• Overall length: ~238"–297" depending on model
• Width outside tires: ~67"–96" depending on model and tire choice
• Overall height: varies by model (approx. 84"–128")
• PTO drive: 540 or 540/1000 RPM (model dependent)
• Tractor power requirement: approx. 82–140 HP (60–103 kW) depending on model
• Tire sizes and axle configurations vary by model; single large wheels or walking tandem axle for ZK-T

Technical specifications — Solomix 2 ZK-T (overview)

• ZK-T variants: 1600L ZK-T up to 2800 ZK-T (capacity 570–1000 cu.ft)
• Overall length: ~268"–297" depending on variant
• Width outside tires: typically ~78" (up to 86" for largest model)
• Overall height: varies by variant (approx. 107"–129")
• PTO drive: mainly 540 RPM; some models offer 540/1000 RPM
• Tractor power requirement: approx. 102–140 HP (75–103 kW)
• Tire size: typically 435/50 R 19.5 on ZK-T variants

Explanation of abbreviations (as listed on product page)

• VL = Front discharge
• H = High discharge unit
• L = Low discharge unit
• B = Synthetic conveyor belt
• K = Conveyor chain
• C = Curved conveyor chain
• S = Fold down chain conveyor
• ZK = Side discharge doors
• X = Heavy Duty

Key technical highlights

• Compact trailed design for flexible use on mixed farms
• Vertical twin augers for consistent mixing and fast throughput
• Multiple discharge configurations and ZK-T axle option to match farm logistics
• Robust drive options and tractor compatibility across the range
