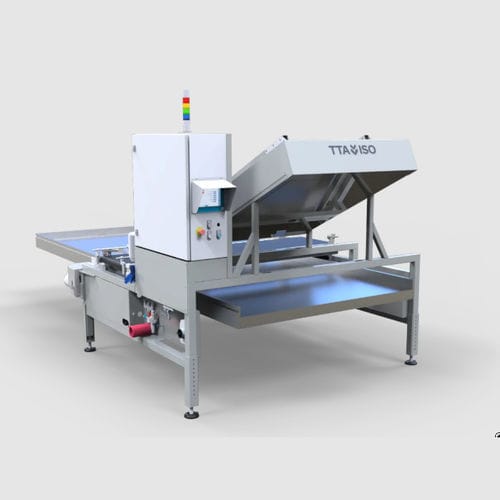

Loader TLF

Overview
The TLF is a loader for trays and flats onto mobile tables or trolleys. A mobile table or trolley is positioned beneath the TLF while trays/flats are fed via a buffer belt and a stepper belt. Once a sufficient number of trays/flats are in position, the conveyor belt tilts and a slider bar pushes them onto the mobile table or trolley. A tilted plate guides the items to ensure a smooth downward movement. During loading, the mobile table or trolley is automatically advanced to match the tray/flat dimensions.

Operation

• Trays/flats fed via buffer belt and stepper belt combination
• Conveyor belt tilts to enable transfer
• Slider bar pushes trays/flats onto the mobile table or trolley
• Tilted plate guides ensure smooth downward movement
• Mobile table/trolley automatically advances to match tray/flat size

Typical application

• Loading trays and flats onto trolleys or mobile tables in pot & tray handling operations

Technical specifications

• Capacity per hour: 800 trays
• Operators: -
• Machine function: table and trolley loading system for trays/flats
• Key mechanisms: buffer belt, stepper belt, tilting conveyor belt, slider bar, tilted plate guide
• Automatic positioning/advancement of mobile table or trolley to match tray/flat dimensions
