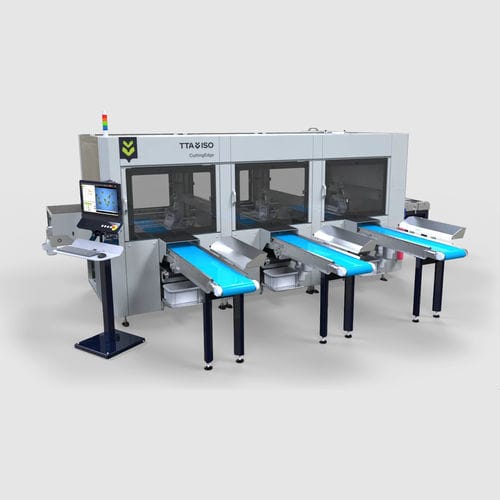

Nursery plants transplanter CuttingEdge Double

automatic2-rowpneumatic

Overview
The CuttingEdge Double is an automated cutting planter designed for high-throughput planting of rooted and unrooted cuttings. The dual-head configuration enables a capacity of 4,000–4,500 cuttings per hour, suited for nursery and propagation operations.

Description
Plug trays are loaded onto the in-feed chain conveyor, either manually or via automatic tray loading. The conveyor accurately positions each tray for processing. Cuttings are separated either manually on the pick-up conveyor or automatically using VisionAir, which combines advanced vision detection with precision air jets to deliver well-separated cuttings to the system. The CuttingVision camera system from TTA-ISO inspects each cutting; qualified cuttings are placed into the plug trays by a robotic planting arm. Rejected or duplicated cuttings are routed back to the operator via an integrated return system for rework or removal.

VisionHub by TTA-ISO
Data produced during teach-in and annotation of cutting setups is collected in VisionHub and shared across CuttingEdge users. This centralized dataset enables:

• Progressive improvement of sticking setups as more annotated data is accumulated.
• Time savings by reusing validated cutting setups available in VisionHub.

Key features

• Automated planting for rooted and unrooted cuttings
• In-feed chain conveyor for precise tray positioning (manual or automatic loading)
• Pick-up conveyor with optional VisionAir separation (vision + precision air jets)
• CuttingVision camera system for quality assessment
• Robotic planting arm for placing cuttings into plug trays
• Return system for rejected or duplicate cuttings
• Data sharing and setup improvements through VisionHub
• Capacity: 4,000–4,500 cuttings per hour

Technical specifications

• Type: Double cutting planter (automated sticking machine)
• Capacity: 4,000–4,500 cuttings/hour
• Separation: Manual or VisionAir automatic separation (vision + precision air jets)
• Vision: TTA-ISO CuttingVision camera system
• Actuation: Robotic arm for planting
• Tray handling: In-feed chain conveyor (manual or automatic tray placement)
• Return system: Returns rejected/duplicated cuttings to operator
• Data platform: VisionHub for sharing and improving cutting setups
