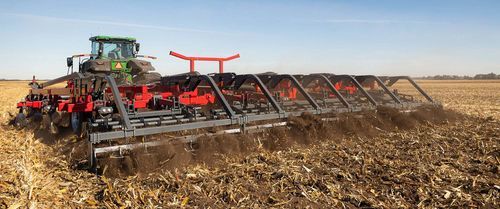

Mounted field cultivator Wil-Rich 483 Pro

foldingwith harrowwith roller

Overview
The Wil-Rich 483 Chisel Pro loosens soil, buries heavy debris, and sizes clods for an ideal field finish. It is a heavy-duty combination cultivator designed with two rows of serrated discs followed by four ranks of chisel tines to meet primary tillage needs: cutting, fracturing and mixing the soil to create optimal conditions for seedbed preparation. The machine is engineered for heavy residue management and to break up compaction layers while producing a smooth field finish.

Key functions

• Residue management: serrated, concave discs cut and size residue into smaller pieces and thoroughly mix it with soil for faster decomposition.
• Compaction relief: four ranks of chisel tines fracture compacted layers down to the working depth and mix soil for improved pore space and root development.
• Seedbed finish: creates clod sizes that retain winter moisture, protect against erosion and simplify spring seedbed work.

Design highlights

• Two rows of serrated discs that size and mix residue before tine action.
• Four offset ranks of chisel tines located behind the discs to loosen and mix the soil.
• Disc and tine configurations designed to maximise flow and minimise plugging in heavy residue.
• Disc depth can be adjusted independently of the tines to suit field conditions and operator preference.

Finish attachments

• 3-bar coil tine harrow with optional rolling basket — distributes residue, breaks up clods and levels the field finish; harrow angle adjustable for aggressiveness.
• 3- or 4-bar coil tine harrow options; harrow tines 16 mm diameter, available in different lengths depending on the attachment.

Agronomic benefits

• Cuts and buries heavy residues to promote faster microbial decomposition and reduce emergence issues such as hair-pinning.
• Breaks compaction to improve water infiltration and root growth.
• Creates a field finish that helps retain moisture and offers protection against wind and water erosion.

Technical specifications

• Commercial name: Wil-Rich 483 Chisel Pro
• Working width: 5 - 10.3 m
• Working depth: up to 25 cm
• Required power: >240 hp
• Tine arrangement: 4 ranks of chisel tines (offset for effective spacing)
• Tine effective spacing: 38 cm (effective per rank); four ranks offset for 38 cm effective spacing overall
• Tine spacing between groups (to ensure flow): 152 cm between tine groups
• Disc setup: two rows of double-mounted serrated concave discs
• Disc diameter: 61 cm
• Disc spacing: 38 cm (second rank offset gives effective blade spacing of 19 cm)
• Finish options: 3- or 4-bar coil tine harrow; rolling basket option with adjustable down pressure; hydraulic lift option for basket available
• Purpose: heavy-duty combination cultivator for cutting, fracturing and mixing soil; primary tillage and post-harvest soil preparation
