Belt conveyor TP98

Product description

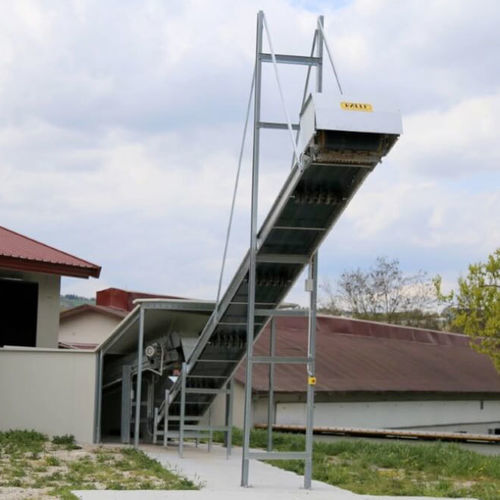

The TP98 manure belt conveyor is designed for quick cleaning and manure removal in livestock facilities. It is fitted with a PVC woven belt suitable for climatic conditions down to -30°C and is driven by a waterproof drum motor (dia. 220 mm / 8.5 in).

Technical data sheet

• Fast cleaning operation
• Belt width: 600 mm (2 ft)
• Speed: 75 m/min (246 ft/min)
• Drive: waterproof drum motor, dia. 220 mm (8.5 in)
• Belt: PVC woven belt, suitable to -30°C

Characteristics / Technical specifications

• Model: TP98
• Belt material: PVC woven belt
• Operating temperature suitability: down to -30°C
• Belt width: 600 mm (2 ft)
• Speed: 75 m/min (246 ft/min)
• Drive: waterproof drum motor, diameter 220 mm (8.5 in)
• Primary use: manure removal / quick cleaning operations in livestock buildings
