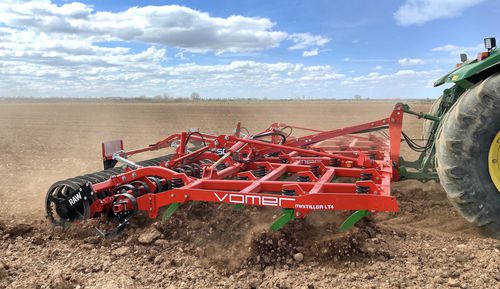

SURFACE WORK SPECIALISTThe MiniTILLER LT4 is a four-row cultivator designed for seedbed preparation, secondary tillage, ploughed land levelling, intercrop incorporation and crust breaking. In a single pass it performs continuous vertical incorporation and breaking down to 20 cm, improving crop establishment and aiding weed and pest control.
Key dataPower: 100–280 hp
Maximum working depth: 20 cm
Working width: 3.00–6.00 m
Rows: 4
WorkThe MiniTILLER LT4 achieves continuous vertical incorporation and breaking down to 20 cm in one pass. Its tines are specially designed for crops requiring seedbed preparation and intensive surface action to enhance seed-to-soil contact.
PerformanceBuilt on a spacious, highly rigid but compact frame that preserves working capacity. Tines are arranged in four symmetrical rows enabling narrow spacing without losing residue-handling performance. The lightweight assembly allows use with smaller tractors while the Non-Stop spring tine ensures reliable depth control with lower power demand compared to other systems.
ReliabilityConstructed from high-strength steel with durable components to minimise adjustments and maintenance. Maintenance-free high-strength arms provide continuous operation. The non-stop vertical spring system delivers robustness and consistent depth control with clip adjustments for easy setting season after season.
Features and benefits- Spacious frame design capable of handling large amounts of residue and stubble
- Narrow 160 mm spacing between tines arranged in 4 rows for intensive mixing and optimal secondary tillage
- Non-Stop spring tine: maintains depth without excessive power draw
- Compact yet robust frame construction for long equipment life and reduced maintenance points
- Lightweight assembly suitable for smaller tractors
- 10-year warranty against breakage on VOMER tine arms
- Minimal maintenance due to few grease points and articulated top bars without welds
4 reasons to choose MiniTILLER LT4- 160 mm tine spacing often eliminates the need for successive passes; a single pass is frequently sufficient even with universal points
- Four rows without increasing rear length — very compact yet spacious frame
- Symmetrical 4-row tine distribution produces homogeneous, balanced work with neutral lateral forces and better use of tractor power
- Even with 160 mm spacing, each row leaves approximately 64 cm gap ensuring superior separation versus 2-row cultivators and preventing residue issues
Technical characteristics / specifications- Model: MiniTILLER LT4
- Power range: 100–280 hp
- Maximum working depth: 20 cm
- Working width: 3.00–6.00 m
- Number of rows: 4
- Tine spacing: 160 mm between tines
- Gap per row: approx. 64 cm per row
- Frame: spacious, highly rigid, compact design; articulated top bars without welds
- Tines: Non-Stop vertical spring tine system for penetration and depth control
- Depth control: clips for easy adjustment
- Maintenance: few grease points, maintenance-free arms
- Warranty: 10-year warranty against tine arm breakage (VOMER)
- Designed for efficient secondary tillage, residue management and seedbed preparation
