Characteristics

Mobility
towed
Other characteristic
depth control
Row spacing

24 cm
(9.4 in)

Width

Max.: 7 m
(23'00" )

Min.: 4 m
(13'01" )

Description

Overview

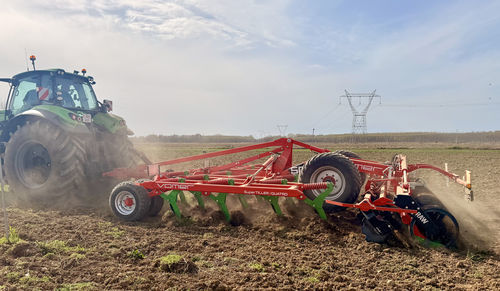

The SuperTILLER | QUATRO by VOMER is a trailed 4-row cultivator engineered for deep and vertical tillage with efficient residue management. Designed for high-output primary tillage, it combines compact transport dimensions with a wide working coverage per pass thanks to its 4-row layout.

Key benefits
  • High capacity for both deep and shallow vertical tillage with optimized use of tractor power.
  • Continuous residue flow and reduced clogging due to increased spacing between tines within each row.
  • Centralized wheel placement improves weight distribution and maneuverability in headlands and narrow plots.
  • Single central depth control ensures uniform regulation between right and left sides.
  • Symmetrical 4-row tine layout maintains a straight path behind the tractor — ideal for GPS-guided operations and fields with buried irrigation.
  • Durable steel frame and maintenance-free arms designed for season-after-season operation; 10-year warranty option against tine-arm breakage.

Design & operation
  • Compact frame comparable to 3-row models while operating in 4 rows every 25 cm to increase area covered per pass.
  • 4-row configuration increases spacing between tines in the same row by about 15% to improve residue flow and reduce clogging.
  • Intermediate/central wheels provide balanced load distribution and prevent pitching; wheels move independently and can be fully raised for transport and maneuvers.
  • Hydraulic central depth control and hydraulically adjustable front control wheels simplify in-field adjustments; optional road suspension available.

Performance claims
  • In field comparisons, the trailed QUATRO increases operational efficiency by up to 18% versus conventional 3-row cultivators (considering worked area, forward speed and fuel per hectare).
  • Suitable for extensive primary tillage with high residue levels at greater depths behind medium- to high-power tractors.

Accessories & options
  • Optional road suspension system for transport comfort.
  • Various front support wheel configurations depending on model (SW270 / SW300).
  • Available equipment packages and attachments to tailor the machine to specific soil and residue conditions.

Technical specifications
  • Commercial name: SuperTILLER | QUATRO
  • General headline power: 170–500 hp
  • Rows: 4
  • Maximum working depth: 40 cm
  • Underbeam clearance: 82 cm
  • Working speed: 5 to 15 km/h
  • Articulated linkage: Cat. 3 (some models Cat. 3-4N)
  • Hydraulics: Double-acting hydraulic controls — hydraulic brake + low-pressure return (max 5 bar)
  • Model 4.00 m: 19 tines in 4 rows; 24 cm spacing; transport width 3.00 m; transport tyres 445/50 R19.5; 1x SW270 front support wheel; recommended power 160–240 hp.
  • Model 5.00 m: 21 tines in 4 rows; 24 cm spacing; transport width 3.00 m; transport tyres 550/45 R22.5; 2x SW270 front support wheels; recommended power 220–300 hp.
  • Model 6.00 m: 25 tines in 4 rows; 24 cm spacing; transport width 3.00 m; transport tyres 550/45 R22.5; 2x SW270 front support wheels; recommended power 280–370 hp.
  • Model 7.00 m: 29 tines in 4 rows; 24 cm spacing; transport width 3.00 m; transport tyres 550/45 R22.5; 2x SW300 front support wheels; recommended power 350–450 hp.
  • Standard spacing between tines: 24 cm
  • Standard transport width: 3.00 m
  • Example transport tyres: 445/50 R19.5 or 550/45 R22.5 depending on model
  • Warranty: 10-year warranty extension available against breakage of the VOMER tine arm (conditions apply).
