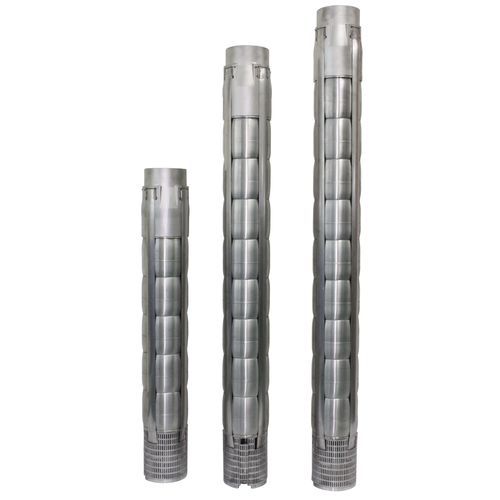

Irrigation pump WPS® series

waterdewateringfor livestock farming

The WPS® Solar borehole pumps are a solution for any borehole solar pumping system possibly needed. Our WPS® Solar borehole pumping systems are composed of three main elements: a WPS® borehole pump (the 3” WPS®, 4” WPS®, 6” WPS®, 8” WPS® or the 10” WPS®), a WPS® submersible motor (from 0.25kW up to 185kW) and a WPS® Solar controller. The WPS® Solar borehole pumps are a perfect solution for the following applications: .Domestic water supply .Tank applications .Boosting systems .Dewatering .Lifestock water supply .Industrial applications .Waterworks .Communities water supply All the WPS® Solar borehole pumping systems are available with optional AC-DC manual change-over. Features A WPS® Solar borehole pumping system is composed of three main elements: a WPS® borehole pump, a WPS® submersible motor and a WPS® Solar controller. WPS® borehole pumps: .Any of the WPS® borehole pumps can be used in a WPS® Solar pumping system, from the 3” WPS to the 10” WPS. .Every WPS® borehole pumps is made out of high quality stainless steel, used for its impellers and diffusers .Head up to 650m WPS® submersible motors: .3” WPS® AC motors from 0.6kW up to 1.5kW, 3x230V, 140Hz used for all systems using a 3” WPS® borehole pump (Except for the 3” WPS® Solar PMM pumping packs) .From 0.25kW up to 1.5kW, the motor used are 3x230V, 50Hz, DOL .From 2.2kW up to 185kW, the motor used are 3x400V, 50Hz, DOL
