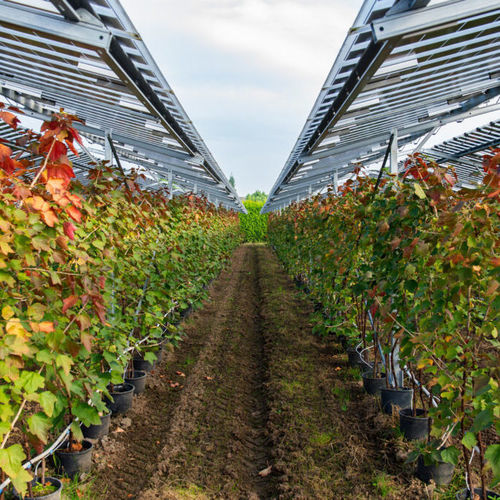

Vineyard agrivoltaic structure ZIM Agri EW

Product overview
This Agri‑PV system has an east‑west orientation and is designed for row crops and hanging‑gutter (endless) cultivation. Protective nets can be integrated between rows and at the gable. Multi‑level planting and irrigation systems can be accommodated. The design provides flexibility in span and crop height and includes integrated cable management for safe, low‑maintenance operation.

Features as row system
Potential crops: Apples, apricots, avocados, blackberries, blueberries, citrus (tangerines, lemons…), currants, figs, gooseberries, raspberries, strawberries, tomatoes, pears, plums, …

• Main PV support tube placed in each planting row.
• Each main tube supports one east‑facing and one west‑facing row.
• Only two rows are connected.
• Flexible span and maximum crop height.
• Integration of protective nets for improved rain distribution possible.
• Step construction possible.
• Easy integration of irrigation system.
• Integrated cable management for safety and reduced maintenance.

ZIM Agri EW 2P – Features as endless system
Potential crops: Strawberries, tomatoes, cucumbers, zucchini, herbs, lettuce, peppers, …

• Designed for hanging planting gutters.
• Provides optimum protection for the plants.
• Almost entirely closed system.
• Sufficient ventilation via gable opening.
• Overlapping module edges create a waterproof roof.
• Practical option when replacing existing foil tunnels.

References (examples)
Wadenojen – Netherlands: ZIM Agri EW, 1.2 MWp, Cultivation: red currant, Start of construction: 2021
Babberich – Netherlands: ZIM Agri EW, 2.67 MWp, Cultivation: raspberry, Start of construction: 2020

Technical specifications

• Model / Denomination: ZIM Agri EW (east‑west oriented Agri‑PV system)
• Orientation: East‑West
• System types: Row system and Endless system (ZIM Agri EW 2P)
• Suitable for: Row crops and hanging‑gutter cultivation (depending on configuration)
• Potential crops (row system): Apples, apricots, avocados, blackberries, blueberries, citrus, currants, figs, gooseberries, raspberries, strawberries, tomatoes, pears, plums, etc.
• Potential crops (endless system / 2P): Strawberries, tomatoes, cucumbers, zucchini, herbs, lettuce, peppers, etc.
• Structural features: Main PV support tube in each planting row; each tube supports one east‑ and one west‑facing row; only two rows connected; flexible span and crop height; step construction possible.
• Plant protection / irrigation: Integration of protective nets (between rows and at gable); support for irrigation system integration; option for improved rain distribution via nets.
• Waterproofing / ventilation (2P endless): Overlapping module edges form a waterproof roof; gable opening provides ventilation; almost entirely closed system.
• Operations & maintenance: Integrated cable management for safety and low maintenance.
• Typical reference project capacities: examples shown from 1.2 MWp to 2.67 MWp.
