Orchard agrivoltaic structure ZIM Agri 1 V

Overview
With its flexible height and inclination adjustments, the ZIM Agri 1 V system can be configured as an agrivoltaic (Agri-PV) installation. Crops such as wheat or barley can be cultivated in the strips between module rows while maintaining access for agricultural operations and biodiversity management.

Potential crops

• Grains (wheat, barley)
• Lettuce
• Potatoes
• Various vegetables

Features

• Allows grazing by livestock beneath and between rows.
• Installation by pile driving and clamping (module clamp or slide-in system).
• Area under the system can be used to promote biodiversity or cultivated as flower meadows or forage.
• Row spacing and system height are adjustable to suit specific crop requirements.
• System inclination adjustable from 10° to 35°.
• Can be installed in continuous rows or as individual table structures.
• Few components enable fast assembly with commonly available tools.
• Module height, spacing and tilt are adjustable during assembly.
• Integrated cable management for improved safety and low maintenance.
• Durability ensured by high-quality components and certified galvanizing.

Reference example

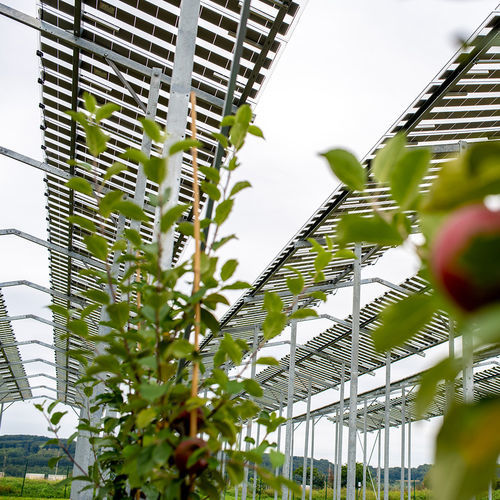

Pöchlarn – Austria: ZIM 1 V, ZIM Agri Top Tracker, ZIM Agri Top; 4.1 MWp; Cultivation: species-rich seed mixture, apples; Start of construction: 2021.

Technical specifications

• Installation method: pile driving and clamping (module clamp or slide-in system).
• Adjustable system inclination: 10° to 35°.
• Adjustable module height and row spacing to meet crop requirements.
• Installation modes: continuous rows or individual table constructions.
• Integrated cable management for reduced maintenance and enhanced safety.
• Rapid assembly with few components using standard tools.
• High-quality components with certified galvanizing for long-term resistance.
