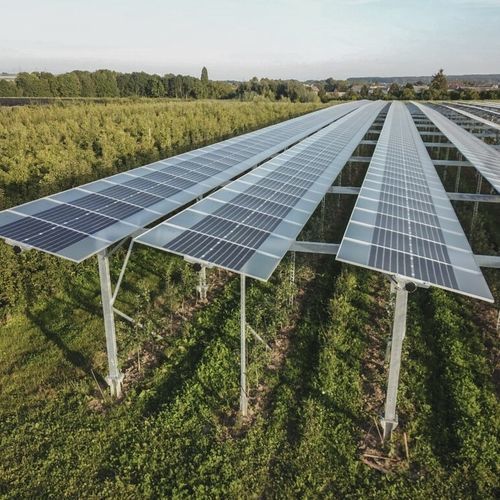

Crop agrivoltaic structure ZIM Agri Top

ZIM Agri Top is a universal agri-photovoltaic (Agri-PV) system designed for south or east–west orientations. It supports two principal configurations: a flexible two-row (row) system and an ‘endless’ multi-row system spanning several planting rows. The system can be combined with the ZIM Track single-axis tracker to increase solar yield where required. It is developed for large-scale agricultural projects with even terrain and offers adjustable module height to accommodate different crop types.

Features as endless system
Potential crops: Apples, apricots, avocados, cherries, citrus (tangerines, lemons…), figs, grapes, kiwi, olives, peaches, pears, plums, …

• Adjustable module height to suit crop needs.
• System spans multiple planting rows to form a continuous canopy.
• Step construction possible under appropriate site conditions.
• Recommended for large-scale projects on even surfaces.
• Flexible span and maximum crop height options.
• Light transmission controllable by spacing between module rows.
• Integrated cable management for enhanced safety and reduced maintenance.

Possible alignment and placement

• South orientation
• East–West orientation
• ZIM Track – single-axis tracker

Features as row system
Potential crops: Apples, apricots, avocados, cherries, citrus (tangerines, lemons…), figs, grapes, kiwi, olives, peaches, pears, plums, …

• Module height adjustable per crop.
• Main PV support tube installed in each planting row.
• Two rows connected to form the structural unit.
• Step construction is possible.
• Rows connected using inclined tubes for stability.
• One module row positioned above the main support tube.
• Flexibility in span and maximum crop height.
• Integrated cable management for safety and low maintenance.

References
Pöchlarn – Austria: ZIM 1 V, ZIM Agri Top Tracker, ZIM Agri Top, 4.1 MWp, Cultivation: species-rich seed mixture, apples, Start of construction: 2021
Gelsdorf – Germany: ZIM Agri Top Tracker, 258 kW, Cultivation: apples, Start of construction: 2020
St. Etienne – France: ZIM Agri Top Tracker, 3.6 MWp, Cultivation: cherry, spinach, Start of construction: 2019

Specifications

• Universal Agri-PV system for south or east–west orientation.
• Compatible with ZIM Track single-axis tracker.
• Installable as flexible two-row system or endless multi-row system.
• Adjustable module height to accommodate different crops.
• System can span several planting rows (endless variant).
• Step construction possible under suitable conditions.
• Recommended for large-scale projects on even surfaces.
• Light transmission adjustable via distance between module rows.
• Integrated cable management for safety and reduced maintenance.
• Row-system specifics: main PV support tube per planting row; two rows connected; rows linked by inclined tubes; one module row above main tube.
