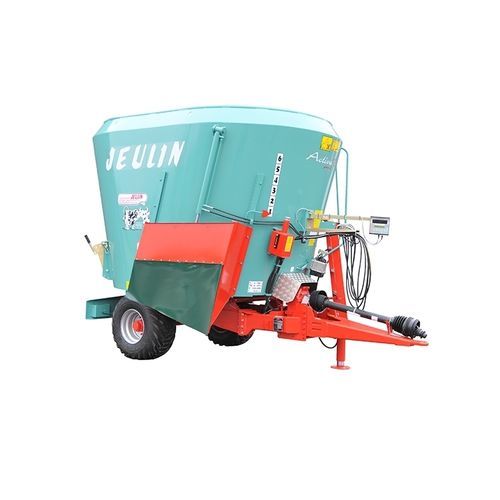

Vertical mixer ACTIVA FORCE 2

towed2-augersingle-auger

Mixing – Dispensing Conic vertical mixing screw equipped with blades. 5 of them with adjustable fitting angles and 1 adjustable scraper 540 rpm gear = 22 turn at the screw, 1000 rpm gear = 40 turn at the screw Conic circle with an anti-flood ring inserted in the vat Angle reverser reducer with oil bath (tank capacity 4l) 2 manual vertical contra-rotating blades Tangential unloading trap door front right hand side or rear left hand side Front left control ladder Conception – Safety Tubular chassis Weighing DG500, 4 points on independant chassis, 24 programs, 18 components with horn Safety casing Adjustable drawbar Road traffic Parking brake and hydraulic brake Lighting in accordance to the Highway code Revolving light Manual kickstand Linkage on piton Adjustable axle for load transfer CE norms and DREAL reception Transmission PTO transmission serie 8 with protection and safety bowl machine side Tractor equipment 1 PTO shaft 540 rpm – 1000 rpm 1 electric plug 12v/3 pins for weighing 1 electric plug 12v/7 pins for light 1 hydraulic distributor 1 DE for the trap door (be carefull of the quantity if additional equipment) 1 linkage piton
