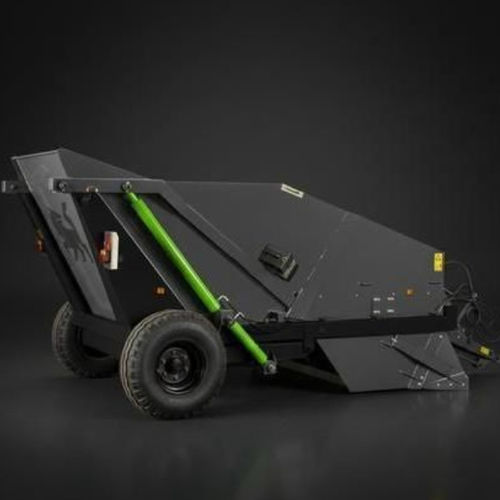

Towed stone picker RC series

for tractors

The continuous-feed stone collector is designed to remove stones up to 30 cm in diameter. Suitable for agricultural applications and for preparing new landscaped, recreational or sports areas.Key dataPower requirement: 70 CVWorking width: 2100 mmWeight: 2050 kgStandard equipment45 mm mesh grateHigh-lift (model 3000AE)Night lightingTorque limiterPTO 540 rpmSelector hydraulic valve on Mod. 3000AEOptional equipment25 mm mesh grate35 mm mesh grate60 mm mesh grateAE model selector hydraulic valveKey featuresHigh hopper discharge heightHigh-performance feed rotorSieve adjustable to stone sizeLoad control from the tractorLarge hopper capacityStable dischargeSpecificationsTotal width (mm): 2340Length (mm): 5050Height (mm): 2050Working depth (cm): 10Discharge height (m): 1.7Hopper capacity (kg): 4000Stone diameter (cm): 22Sieve (mm): 45Hydraulic equipment: 1 single-acting + 1 double-actingWorking width shown also: 2100 mmWeight shown also: 2050 kgPower shown: 70 CV
