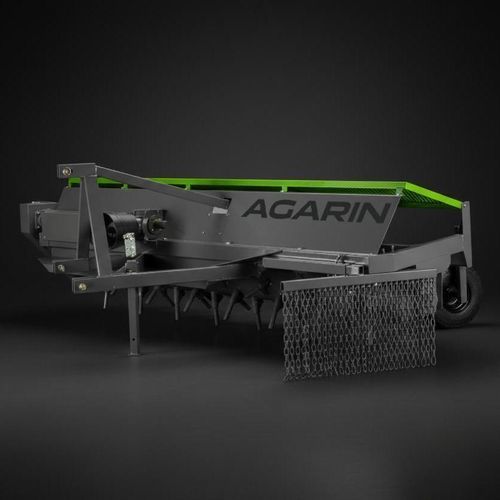

Stone rake RH3000R

rotaryfor tractors

Overview
The AGARIN RH series stone raking machine is designed to align and group field stones quickly and uniformly to facilitate subsequent collection. Replaceable tines and a chain-driven transmission provide durable operation and consistent performance on uneven terrain.

Key features

• Chain drive with torque limiter: durable and low maintenance.
• Replaceable tines for clean, even stone alignment.
• Top grate to prevent stones falling into cleared area.
• Working width: 3 m.
• Compact, stable design for easy handling and transport.

Standard equipment

• Replaceable tines
• Chain transmission
• Torque limiter

Data sheet (main data)
MODEL: 3000R
Working width: 3000 mm
Required power: 50 HP
Weight: 750 kg

Technical specifications

• Total width (mm): 3050
• Working width (mm): 3000
• Stone diameter (cm): 30
• Rotor diameter (cm): 30
• Number of tines: 64
• Stone size (cm): 25
• PTO (rpm): 540
• Offsettable: No
• Standard equipment: replaceable tines, chain drive, torque limiter
