Stone rake RH series

rotaryfor tractorsmobile

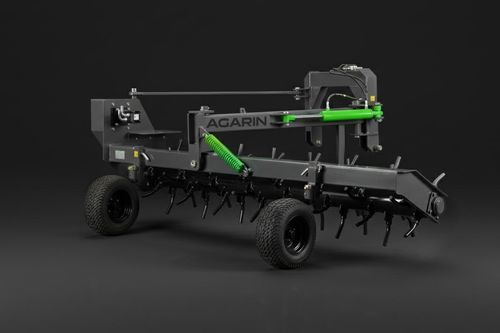

Summary The AGARIN RHD series RHD 2500H is designed for working in tree rows and narrow geometries, arranging stones into collectable rows even around obstacles. Its independent hydraulic drive eliminates reliance on the tractor PTO, delivering smoother and more controllable operation. Hydraulic lateral shift allows instant position adjustment to optimize performance in tight frames and under the canopy. The machine keeps replaceable tines and chain transmission for easy maintenance and durability.

Main features

• Independent hydraulic transmission
• Replaceable tines
• Hydraulic lateral shift
• Working widths from 2.4 m to 3.0 m
• Compact, stable design for under‑canopy work

Standard equipment

• Replaceable tines
• Hydraulic lateral shift
• Hydraulic drive

Key technical data Power requirement: 50 HP
Working width: 2400 mm
Weight: 590 kg

Specifications Overall width (mm): 2700
Stone diameter (cm): Up to 25
Hydraulic supply: 2 double‑acting circuits
Rotor diameter: 600 mm
Number of tines: 58
Stone size (cm): 25
Side‑shift: Yes

Technical characteristics / specifications

• Series: RHD
• Model: 2500H
• Required power: 50 HP
• Nominal working width: 2400 mm
• Overall width: 2700 mm
• Weight: 590 kg
• Rotor diameter: 600 mm
• Number of tines: 58
• Stone diameter / size: up to 25 cm
• Hydraulic equipment: 2 double‑acting circuits
• Lateral shift: hydraulic (offset)
• Transmission system: chain drive
• Tines: replaceable
