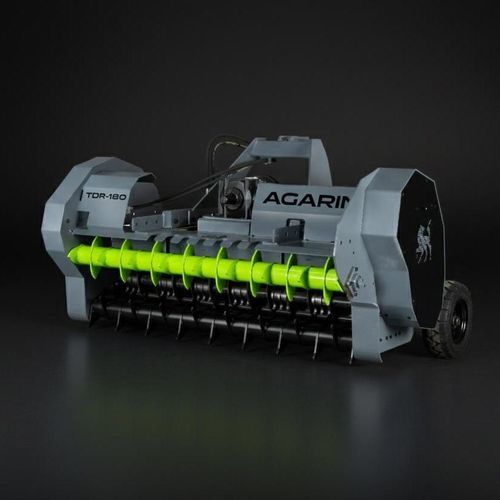

Mounted wood chipper TDR series

PTO-driven

Overview
The TDR EVO pruning residue shredder is designed for farmers seeking fine shredding and reduced tractor effort. With the AGARIN patented shredding system, the TDR EVO pairs a rotor compatible with either swinging or fixed hammers and improved feed and hydraulic systems.

Main features

• Mechanical power: 80 HP (minimum recommended).
• Rotor working width: 1800 mm.
• Approximate weight: 1340 kg.
• Capacity for branches up to 23 cm diameter.
• Large-diameter anti-clog rotor.
• Rotor compatible with combinable swinging or fixed hammers.

Standard equipment

• High-strength steel chassis
• Reversible three-point hitch, category 2
• Anti-clog rotor
• Swinging hammers in Hardox steel
• Drive by cardan shaft
• Bondioli unit 2071 1" 3/4 RL
• Protections according to regulations
• CE certification

Optional equipment

• Fixed hammer kit
• Reversible swinging hammer kit
• Electronic anti-stress kit
• PTO unit for 540 rpm
• Hydraulic starter
• 360° swivel wheels
• Solid wheel set
• 4.0 technology kit
• Dual freewheel unit

Key elements (summary)

• Optimized feed opening and higher-power hydraulic motor.
• Upper feeder visible from the tractor cab.
• Handles branches up to 23 cm.
• Rotor compatible with swinging or fixed hammers.
• Large-diameter anti-clog rotor with swinging hammers as standard.

Technical data (table)
Machine width (mm) — 2100
Machine height (mm) — 1250
Machine depth (mm) — 1450
Minimum recommended power (HP) — 80
Maximum allowable power (HP) — 185
Cutting diameter (mm) — 450
PTO — 1000 rpm
Number of hammers — 78
Rows of replaceable and fixed counterknives — 2+1
Number of XPB belts — 5
Hydraulic circuit — 1 double-acting

Specifications / technical data

• Machine width (mm): 2100
• Machine height (mm): 1250
• Machine depth (mm): 1450
• Minimum recommended power (HP): 80
• Maximum allowable power (HP): 185
• Cutting diameter (mm): 450
• PTO: 1000 rpm
• Number of hammers: 78
• Rows of replaceable and fixed counterknives: 2+1
• Number of XPB belts: 5
• Hydraulic circuit: 1 double-acting
