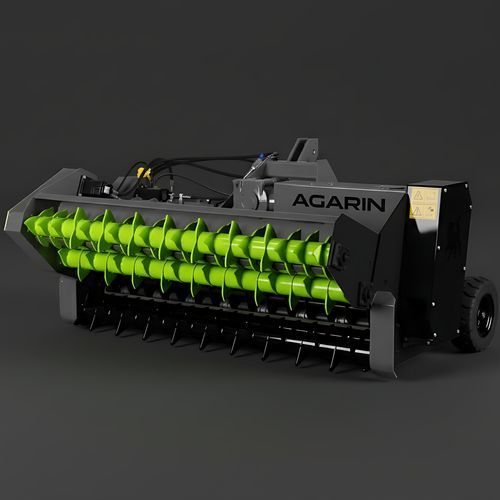

Mounted wood chipper TRXX series

PTO-driven

Summary
The TRX-X by AGARIN is the most powerful model in its series of pruning residue shredders. Fitted with a triple-feed system and a reinforced rotor group, it is built for high-intensity field work and continuous operation. The machine includes an anti-stress electronic kit and handles large branch cords with consistent throughput and precision.

Main data
Mechanical power: 100 CV
Working width (nominal): 1800 mm
Weight: 1660 kg

Standard equipment

• High-strength steel chassis
• Reversible three-point hitch, category 2
• Anti-blocking rotor
• Replaceable mobile hammers in Hardox steel
• Cardan transmission G9
• Bondioli 2081 1" 3/4 RL gearbox
• Safety protections in compliance with standards
• CE certification
• Triple feed
• Smart feeder opening system®
• AGARIN anti-stress electronic kit

Optional equipment

• Fixed hammer kit
• Reversible mobile hammer kit
• PTO gearbox for 540 rpm
• Hydraulic starter
• Solid wheels
• Industry 4.0 technology kit

Key elements

• Patented AGARIN shredding system
• High-power drive group for tractors with larger PTOs
• Capacity for branches up to 28 cm diameter
• Anti-blocking rotor with mobile hammers
• Upper feeder visibility from the tractor cab

Technical specifications

• Model: TRXX-180
• Machine width (mm): 2200
• Machine height (mm): 1200
• Machine length (mm): 1770
• Minimum recommended power (CV): 100
• Maximum admissible power (CV): 205
• Cutting diameter (mm): 510
• PTO: 1000 rpm
• Number of hammers: 78
• Rows of counter-hammers (replaceable + fixed): 2+1
• Number of XPB belts: 6
• Hydraulic circuit: 1 double-acting + 1 single-acting + drain
• Nominal working width: 1800 mm
• Weight: 1660 kg
