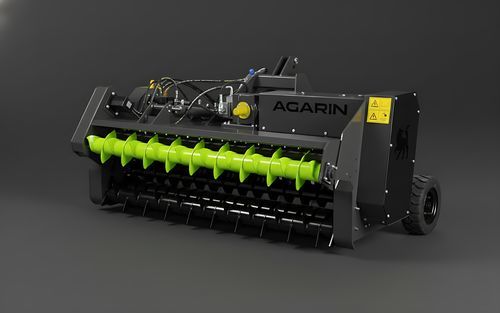

Mounted wood chipper TRX series

PTO-driven

Overview
The TRX range by AGARIN is the top line of pruning-residue shredders. Its intelligent feed opening accepts larger logs while the patented shredding system ensures consistently fine output. Built for balanced operation and low maintenance, the TRX-180 adapts to tractors in the 100–205 CV range for professional agricultural use.

Key features

• Shredding system patented by AGARIN.
• Large-diameter anti-clog rotor with choice of reversible or fixed hammers (Hardox).
• Mobile top feeder accepting logs up to 28 cm diameter.
• Lateral cardan transmission for stability and precision.
• Operator visibility of the top feeder from the tractor cab.
• Option to fit fixed or movable hammers.

Standard equipment

• High-strength steel chassis.
• Reversible three-point hitch, category 2.
• Anti-clog rotor with movable Hardox hammers.
• Cardan transmission; Bondioli 2081 1" 3/4 RL drive unit.
• Protections and CE certification.
• Mobile top feeder and intelligent feeder opening system.

Optional equipment

• Fixed-hammer kit.
• Reversible movable-hammer kit.
• Electronic anti-stress kit.
• PTO kit for 540 rpm.
• Hydraulic starter.
• Solid wheels (set).
• Industry 4.0 technology kit.

Specification table
Machine width (mm): 2150
Machine height (mm): 1200
Machine depth (mm): 1450
Working width (mm): 1800
Recommended minimum power (CV): 100
Maximum allowed power (CV): 205
Mechanical power (CV): 100
Weight (kg): 1490
Cutting diameter (mm): 510
PTO: 1000 rpm
Number of hammers: 78
Counterhammer rows (replaceable + fixed): 2+1
Number of XPB belts: 6
Hydraulic circuit: 1 double-acting + 1 single-acting + drain

Technical characteristics / specifications

• Model: TRX-180.
• Shredding system: patented by AGARIN.
• Mobile top feeder (accepts logs up to 28 cm diameter).
• Anti-clog rotor with option of fixed or movable Hardox hammers.
• Transmission: lateral cardan; Bondioli 2081 1" 3/4 RL drive unit.
• PTO: 1000 rpm (option 540 rpm with optional drive unit).
• Recommended power: 100–205 CV.
• Approx. weight: 1490 kg.
• Machine dimensions (mm): width 2150 · height 1200 · depth 1450.
• Cutting diameter: 510 mm.
• Number of hammers: 78 (counterhammer rows 2+1).
• XPB belts: 6 units.
• Hydraulic circuit: 1 double-acting + 1 single-acting + drain.
