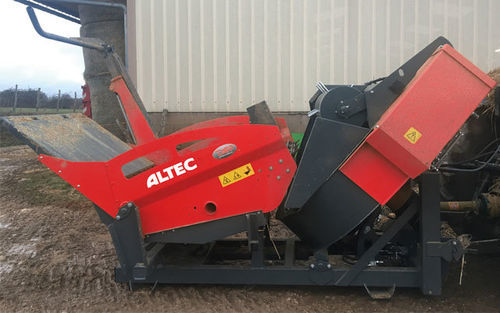

Towed straw blower DR 180 PI Flow

mountedbeddingfor round bales

Presentation
The DR 180 PI Flow turbine straw spreader is available in mounted and trailed versions. It combines a bale unroller with blower-based mulching (throw up to 15 m). Its tilting box and hydraulic loading arm enable optimal bale handling and core unrolling for even distribution and mulching.

Key features

• Hydraulically tilting box: dedicated loading system to position the bale at the end of the conveyor for core unrolling.
• Hydraulic loading arm: enables autonomous loading of round bales; optional hydraulic box extension available to accept square bales.
• Retractable tines: prevent material returning under the box for consistent unrolling performance.
• 3‑blade turbine: scattered mulching mode that reduces dust emissions; right-side chute up to 15 m; 270° orientable chute — 15 m to the right / 13 m to the left.
• Retractable-finger detangler (option): mounted on the turbine to regularize material feed; mandatory for square bales and strongly recommended for round bales.

Functional summary
2-in-1 machine combining unroller and blower mulcher; available in mounted and trailed variants; distribution possible to right and left; arm and box designed to facilitate bale loading and core unrolling.

Specifications table (excerpt)
Round bales (mm): Ø 1.80 max
Square bale 120 x 90 x 250: 1
Loading arm: Standard hydraulic
Distribution: Right & Left
Turbine position (Mounted / Trailed): Front / Front or rear
Overall height (mm) (Mounted / Trailed): 2300 / 2720
Overall length (mm) (Mounted / Trailed): 3450 / 3900
Overall width (mm): 2000
Hydraulic function: 1 DA
Tractor power (HP): 100
Unladen weight (kg) (Mounted / Trailed): 1150 / 1200

Technical features / specifications

• Model: DR 180 PI Flow (mounted or trailed version)
• Type: turbine straw spreader (blower mulching)
• Mulching throw: up to 15 m (right-side chute 15 m; 270° orientable chute: 15 m right / 13 m left)
• Box: hydraulically tilting (positions bale at conveyor end for core unrolling)
• Loading arm: hydraulic, autonomous loading of round bales (optional extension for square bales)
• Retractable tines: prevent product return under the box for homogeneous unrolling
• Detangler: retractable fingers mounted on turbine (option) — recommended for round bales, mandatory for square bales
• Distribution: right and left possible
• Turbine position: Front (mounted) / Front or rear (trailed)
• Overall dimensions (Mounted / Trailed): height 2300 / 2720 mm — length 3450 / 3900 mm — width 2000 mm
• Hydraulic function: 1 DA
• Required tractor power: 100 HP
• Unladen weight (Mounted / Trailed): 1150 / 1200 kg
