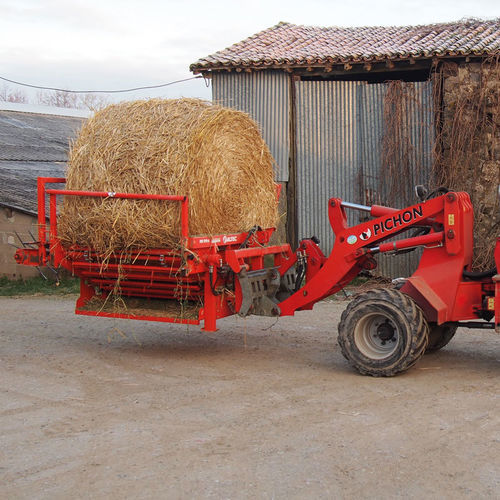

Mounted bale unroller DR 170

beddingwith blowerround

Overview
The lightest mechanical solution for bedding and spreading of round bales. Lateral model DR 170 is designed to ensure regular forage distribution and sustained bedding while remaining maneuverable in narrow spaces.

Usage

• Designed for farm loaders and articulated loaders (telehandlers).
• Allows access and operation in the narrowest feeding alleys.
• Capable of unrolling straw, hay and wrapped bales up to 1 tonne, in rear-right (3-point hitch) or front-left (loader) positions.
• Unladen weight under 500 kg for easier handling and transport.

Equipment and options

• Tooth straw projector: hydraulic comb system with flexible fingers to project straw up to 5 m while preserving long strands and limiting dust. Manually foldable for rear-right (3-point) or front-left (loader) positioning.
• Chain conveyor and slats: adjustable chain tension according to bale weight; fitted with fixed teeth; forward/reverse to manage bale position.
• Deflector hood (option): located above the combs, channels straw flow for more precise bedding and reduces dust spread.
• Hydraulic loading arm (option): enables autonomous loading of the bale into the spreader body.

Table of characteristics (excerpt)
Round bales (mm): Ø 170 max
Loading arm: Option
Distribution: Rear right or Front left
Overall height (mm): 1400
Overall length (mm): 2000
Overall width (mm): 1710 without spreader / 2150 with spreader
Hydraulic function: 1 double-acting
Hydraulic flow required: 40 – 50 l/min
Tractor power: 60 HP
Unladen weight (kg): 490

Characteristics / technical specifications

• Compatible round bales: maximum diameter Ø 170 mm
• Overall length: 2000 mm
• Overall height: 1400 mm
• Overall width: 1710 mm (without spreader) / 2150 mm (with spreader)
• Hydraulic function: 1 double-acting circuit (1 DA)
• Hydraulic flow required: 40 – 50 l/min
• Recommended tractor power: 60 HP
• Unladen weight: 490 kg
• Loading arm: available as option
