Mounted bale unroller DR 180 PI AXIALE

beddingfor square baleswith blower

Overview
The lightest mechanical solution for mulching and distributing round bales. Models presented: DR 180 PI Axiale, DR 180 PI Latérale and the versatile Multibaler. These machines allow full unrolling to the bale core and adjustable discharge to left, right or center of the feed corridor.

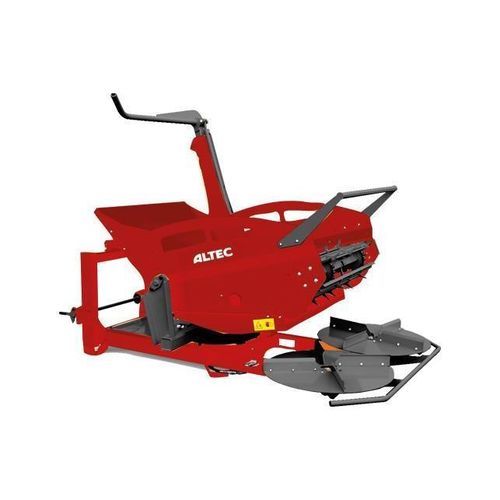

DR 180 PI Axiale — Description
The mounted DR 180 PI Axiale straw distributor permits full unrolling to the bale core. Equipped with spreading discs, it covers wide swaths and allows manual adjustment of disc speed for tailored spreading. Material can be distributed to the left or right of the feed corridor.

Key features (DR 180 PI Axiale)

• Spreading discs: coverage up to 6 m width (optional up to 8 m), disc rotation speed manually adjustable.
• Hydraulically tilting box: dedicated loading system positions the bale at the end of the conveyor for core unrolling.
• 180° rotation: gear-driven rotation enabling distribution to both sides.
• Hydraulic loading arm (option): hydraulic adjustment to handle different bale diameters.
• Retractable teeth (option): ensure effective unrolling, prevent straw returning under the box and produce a homogeneous cord along the feed table.

DR 180 PI Latérale — Description
The mounted DR 180 PI Latérale allows full unrolling to the bale core. It features an orientable and retractable straw projector for even distribution left, right or center and 180° adjustable spreading.

Key features (DR 180 PI Latérale)

• Retractable comb-type straw projector: 180° spreading over 5 m or 10 m per oscillation, projector retracts under the machine.
• Hydraulically tilting box: eases bale loading and allows full unrolling.
• 180° rotation: rotary distributor for bilateral distribution.
• Hydraulic loading arm (option): adapts to various bale diameters.
• Retractable teeth (option): ensure efficient unrolling and a homogeneous cord.

Multibaler — Description
The mounted Multibaler unroller/distributor is versatile: it handles round or square bales, loads round bales using the loading arm and tilting box. Designed for higher performance with an extended box, a detangler and retractable fingers, it offers increased capacity and operational flexibility.

Key features (Multibaler)

• Spreading discs: options for 6 m or 8 m coverage, disc rotation speed manually adjustable.
• Hydraulically tilting box: supports bale during loading and enables full unrolling.
• 180° rotation: bilateral distribution via gear wheel.
• Hydraulic loading arm: supports bale during loading, hydraulically adjustable for different bale diameters.
• Retractable teeth: ensure efficient unrolling and prevent straw returning under the box.
• Detangler and retractable fingers: enable handling of square or round bales and adjustment of product output speed.

Technical specifications

• Main models: DR 180 PI Axiale, DR 180 PI Latérale, Multibaler.
• Round bales (mm): Ø 180 max (value shown on the sheet).
• Loading arm: Standard hydraulic (on presented models).
• Distribution: DR 180 PI Axiale — Right & Left; DR 180 PI Latérale — 180°; Multibaler — 180°.
• Overall height (mm): DR 180 PI Axiale / Latérale — 2100 mm; Multibaler — 2500 mm.
• Overall length (mm): DR 180 PI Axiale / Latérale — 1610 mm; Multibaler — 3600 mm.
• Overall width (mm): DR 180 PI Axiale / Latérale — 2100 mm; Multibaler — 1666 mm.
• Hydraulic function: 1 SE (indicated for each model).
• Towing power (T): 3 T.
• Recommended tractor power: DR 180 PI Axiale / Latérale — 100 CV; Multibaler — 90 CV.
• Unladen weight (kg): DR 180 PI Axiale / Latérale — 990 kg; Multibaler — 1100 kg.
