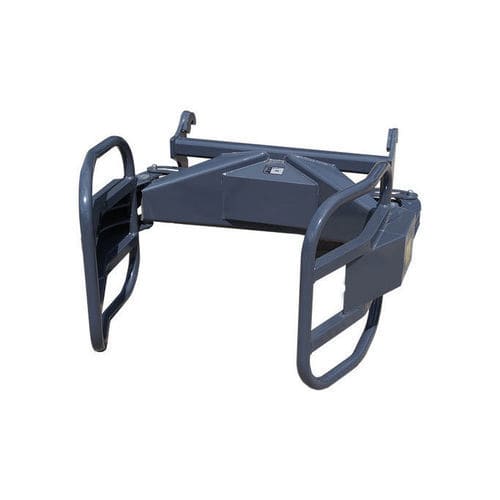

Round bale grab M10 P series

Overview
For handling your wrapped round bales. The M10 P series wrapping clamps feature a bolted/bracketed mounting to fit your loaders (welded mounting for the M10 P140+). Designed to avoid damaging the plastic film while providing a secure grip that prevents the bale from falling.

Key features

• Free clamp arms : The clamp arms move freely to centre on the wrapped bale, facilitating pick-up and release.
• Box-section chassis : Reinforced chassis resists the weight of wrapped bales and prevents clamp deformation.
• Smooth tubular clamps : Tubular clamps Ø 50 mm ensure handling without puncturing or damaging the film.

Applications
Handling and gripping wrapped round bales while avoiding perforation of plastic films.

Technical specifications

• M10 P140 —
  Bale diameter (cm) : 100 to 140
  Number of bales : 1
  Rated capacity (kg) : 1200
  Hydraulic function : 1 DE
  Empty weight (kg) : 135
• M10 P140+ —
  Bale diameter (cm) : 100 to 140
  Number of bales : 1
  Rated capacity (kg) : 1600
  Hydraulic function : 1 DE
  Empty weight (kg) : 160
• M10 P160 —
  Bale diameter (cm) : 110 to 160
  Number of bales : 1
  Rated capacity (kg) : 1200
  Hydraulic function : 1 DE
  Empty weight (kg) : 145
