Square bale grab G45²

Presentation

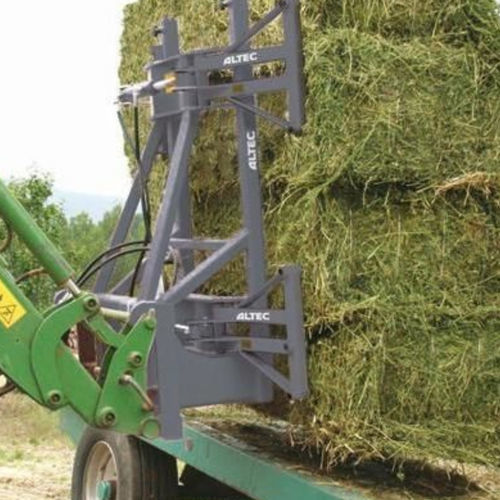

This bale clamp enables handling of square bales and packs of small bales. Built on a one-piece frame, it is fitted with sleeved joints with grease nipple to ensure long service life.

Key features

• Two sets of tines: designed for handling square bales, the claw can be fitted with a lower 3-tooth frame specifically dedicated to small packs.
• Versatile: handles square bales and packs of small bales.
• Robust construction: one-piece frame and sleeved joints with grease nipple for improved durability.

Specifications shown on the sheet
Round bale diameter (cm) : Ø 90 to 180
Number of round bales : 2
Number of cubic bales : 3
Working height (cm) : 190
Manual lift : Yes

Equipment : 2 x 5 teeth Ø 25 mm
Hydraulic function : 1 DE
Rated capacity (kg) : 1200
Tare weight (kg) : 270

Use
Handling attachment suitable for moving bales/cubes and packs of small bales. Fits equipment compatible with a 1 DE hydraulic control.

Technical characteristics / specifications

• Model : G45²
• Round bale diameter : Ø 90 to 180 cm
• Number of round bales : 2
• Number of cubic bales : 3
• Working height : 190 cm
• Lift : manual
• Equipment : 2 x 5 teeth Ø 25 mm
• Hydraulic function : 1 DE
• Rated capacity : 1200 kg
• Tare weight : 270 kg
