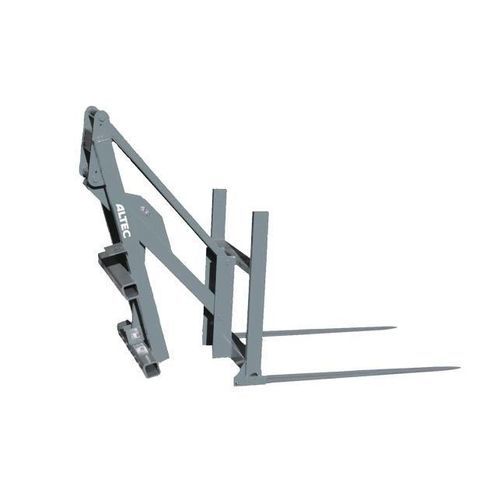

Round bale grab MS 150 PIC

squareheight extension

Overview
Handling tool with spike for lifting and storing round and square bales. The PIC version provides a 150 cm lift. With the MS 150 PIC elevator you can stack five 1.2 m bales to raise the loader to 3.3 m. The elevator is slightly inclined rearward to minimize the front overhang on compact loaders.

Application

• Lift and storage of round and square bales
• Designed for mounting on front loaders

Technical specifications MS 150 PIC
Round bale diameter (cm): Ø 90 to 180
Number of round bales: 1
Number of square bales: 1
Lift height (cm): 150
Equipment: 2 tines Ø 35 mm Length 110 cm
Raise/lower type: Parallelogram
Hydraulic tipping: –
Hydraulic function: 1 DE
Rated capacity (Kg): 600
Unladen weight (Kg): 220

Features / technical specifications

• Model: MS 150 PIC
• Rated capacity: 600 Kg
• Lift height: 150 cm
• Allows stacking five 1.2 m bales to raise the loader to 3.3 m
• Accepted round bale diameters: Ø 90 to 180 cm
• Number of round bales: 1
• Number of square bales: 1
• Equipment: 2 tines Ø 35 mm, length 110 cm
• Raise/lower type: parallelogram
• Hydraulic function: 1 DE
• Unladen weight: 220 Kg
