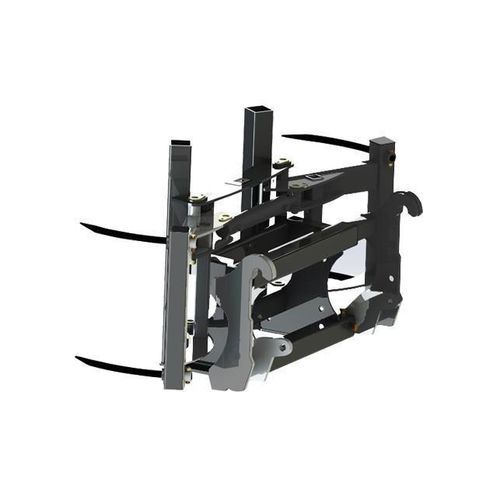

Round bale grab G series

square

Overview
The G60 – G110 – G170 bale clamp enables handling of round and square bales. Built on a monobloc frame, the clamp is fitted with a bridle-type hitch and bushed pivots with grease fittings to ensure long service life. Versatile and durable, it is available in several heights and capacities depending on the model.

G60
The G60 clamp is designed to handle a single round bale or a single square bale. It provides a working height suited to standard uses and a robust basic equipment level.

Technical points G60 (table)
Round bale diameter (cm): Ø 90 to 180
Number of round bales: 1
Number of square bales: 1
Working height (cm): 60
Manual extension: –
Equipment: 2 x 2 tines Ø 25 mm
Hydraulic function: 1 double-acting circuit
Rated capacity (kg): 600
Unladen weight (kg): 120

G110
The G110 clamp allows simultaneous handling of two round bales or two square bales depending on configuration. It offers increased working height and can be fitted with a manual extension.

Technical points G110 (table)
Round bale diameter (cm): Ø 90 to 180
Number of round bales: 2
Number of square bales: 2
Working height (cm): 110
Manual extension: Yes
Equipment: 2 x 4 tines Ø 25 mm
Hydraulic function: 1 double-acting circuit
Rated capacity (kg): 1200
Unladen weight (kg): 230

G170
The G170 clamp is intended for the heaviest loads in the series, with maximum working height and capacity. It can handle multiple bales and offers reinforced equipment for intensive use.

Technical points G170 (table)
Round bale diameter (cm): Ø 90 to 180
Number of round bales: 2
Number of square bales: 3
Working height (cm): 170
Manual extension: Yes
Equipment: 2 x 6 tines Ø 25 mm
Hydraulic function: 1 double-acting circuit
Rated capacity (kg): 1600
Unladen weight (kg): 320

Key features and options

• Monobloc frame for durability and long service life
• Bridle-type hitch
• Bushed pivots with grease fittings
• Folding tines: system allowing safe road travel (option)
• Sliding extension (stabilizer extensions 65 cm) to increase load height (option)
• Grip synchronization: simultaneous opening/closing of grips, recommended for small packages (option)

Usage
Designed for handling round and square bales in agricultural and farming operations, the G series (G60, G110, G170) offers multiple configurations to match required capacity and working height.

Characteristics / technical specifications

• Available models: G60, G110, G170
• Supported round bale diameter: Ø 90 to 180 cm
• Number of round bales handled (per model): G60 = 1, G110 = 2, G170 = 2
• Number of square bales handled (per model): G60 = 1, G110 = 2, G170 = 3
• Working height (cm): G60 = 60, G110 = 110, G170 = 170
• Manual extension: G60 = no, G110 = yes, G170 = yes
• Tine equipment (Ø 25 mm): G60 = 2 x 2 tines, G110 = 2 x 4 tines, G170 = 2 x 6 tines
• Required hydraulic function: 1 double-acting circuit
• Rated capacity (kg): G60 = 600 kg, G110 = 1200 kg, G170 = 1600 kg
• Unladen weight (kg): G60 = 120 kg, G110 = 230 kg, G170 = 320 kg
• Available options: folding tines (road), sliding extension 65 cm, grip synchronization
