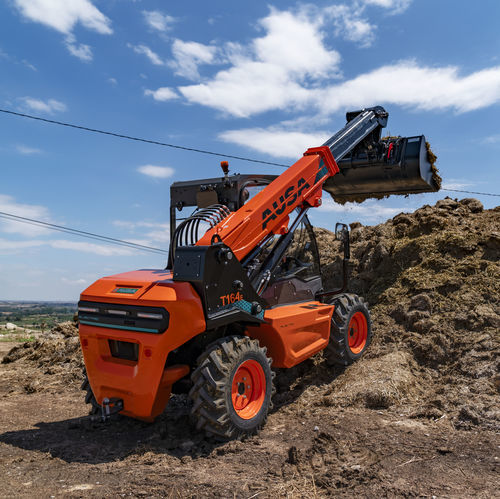

Agricultural telehandler T164E

Product description
The T164E electric telehandler is an all-terrain, zero-emission machine for material lifting operations. Designed to cover a full working day without recharging, it includes an integrated charging cable with three connection options: 110 V, 230 V or 415/400 V using a fast charger. Suitable for emission-free environments such as greenhouses, indoor works and municipal night works. Power references on product documentation include 18.6 kW (commercial text) and values from technical data (peak 21.2 kW / nominal 8.6 kW). It performs on demanding terrain and steep gradients (product text cites up to 32%; technical table indicates 38%).

Key features

• All-terrain capability (4x4 FullGrip)
• Electric drive — zero emissions
• Integrated charging (110 V / 230 V / 400 V)
• Day and night operation with 360º visibility
• Low noise operation
• Optional additional battery for extended range

General
Load capacity: 1600 kg
Load at maximum height: 1600 kg
Empty weight: 3370 kg
Transmission: Electric
Maximum lift: 4000 mm (3400 mm under maximum load)
Maximum reach: 1740 mm
Max load at maximum reach: 600 kg

Battery
Battery type: Lithium‑Ion (NCM)
Gross capacity: 15.5 kWh
System voltage: 48 V
Range: One intense shift (varies with conditions). For temperatures below 0 °C, optional additional battery (+3.1 kWh) is recommended.

Charge
Charger: Integrated
Charging time 20‑80%: ~3:15 h (230 V) — may vary with conditions and charger power
Charging time 20‑80% (fast charger): ~1 h (400 V) — may vary
Charging cable plug types: 110 V (yellow); 230 V (blue); 400 V (red)

Engine / Electric drive
Peak power: 21.2 kW
Nominal power: 8.6 kW
Torque: 134 (unit as in source)
Emissions: Zero emissions
Noise level (LwA): -

Driving
Max. speed: 15 km/h
Maximum gradient: 38% (technical table) — commercial text also refers to operation on up to 32%
External turning radius: 3440 mm
Traction: 4x4 FullGrip
Tyres: 10/75-15.3

Hydraulic system
Flow rate: 29 l/min
Working pressure: 210 bar

Tank capacity
Hydraulic tank: 33 l

Brakes
Service: Hydraulic
Parking: Negative

Equipment (selected items)
Driving position

• Open ROPS/FOPS cab
• Semi-closed ROPS/FOPS cab with front, rear and upper windscreens
• Closed ROPS/FOPS cab with heating

Couplers

• Universal mechanical coupler
• Universal hydraulic quick coupler with 5th hydraulic line
• EURO8 hydraulic quick coupler with 5th hydraulic line

Safety

• Seat belt with fasten sensor
• Seat with operator presence sensor
• LED rotating beacon
• White-noise reverse alarm
• Emergency stop
• Hill Holder (hill-start assist)
• Negative parking brake
• Load level indicator
• Overload locking system with 60-second deactivation push-button
• Joystick lock switch
• Windscreen protective grill

Lighting and driving

• Road lights and second rear-view mirror
• Front (2) and rear (1) working lights
• Rear-view mirror
• Right-side panoramic rear-view mirror

Comfort

• Adjustable ergonomic seat
• All-in-one joystick
• Inverted joystick functions (option)

Advanced equipment

• Electric transmission
• Second-generation FullGrip® (4WD)
• Digital display
• Advanced support
• AUSAnow fleet manager (optional)
• Additional battery +3.1 kWh (optional)

Forks

• 1,000 mm forks
• 1,200 mm forks
• 1,050 mm fork carriage
• 1,200 mm load rest
• Built-in FEM II side shifter with 1,200 mm load rest

Implements

• Two-hand control for locking/unlocking attachments
• 420-litre shovel

Accessories

• 4th auxiliary hydraulic line
• 5th auxiliary hydraulic line
• Auxiliary hydraulic line with continuous flow
• Car radio
• Waterproof document holder
• Air filter with cyclone pre-filter
• Biodegradable hydraulic oil
• Towing ball
• Power socket for trailer

Tyres

• Turf tyres 10-16.5" (option)

Parts

• 1,000 h maintenance kit
• Spare wheel

Characteristics / technical specifications

• Model: T164E
• Brand: AUSA
• Load capacity: 1600 kg
• Empty weight: 3370 kg
• Transmission: Electric
• Maximum lift: 4000 mm (3400 mm under maximum load)
• Maximum reach: 1740 mm
• Max load at maximum reach: 600 kg
• Battery: Lithium‑Ion (NCM), 15.5 kWh, 48 V
• Optional additional battery: +3.1 kWh
• Range: One intense shift (varies with conditions)
• Charger: Integrated (110 V / 230 V / 400 V). 20‑80%: ~3:15 h (230 V) / ~1 h (400 V fast charger)
• Peak power: 21.2 kW • Nominal power: 8.6 kW
• Torque: 134 (unit as in source)
• Emissions: Zero emissions
• Max speed: 15 km/h
• Maximum gradient: 38% (technical table) — commercial text mentions up to 32%
• External turning radius: 3440 mm
• Traction: 4x4 FullGrip
• Tyres (standard): 10/75-15.3
• Hydraulic flow: 29 l/min • Working pressure: 210 bar
• Hydraulic tank capacity: 33 l
• Brakes: Service hydraulic; Parking negative
