Agricultural telehandler T204H

Overview

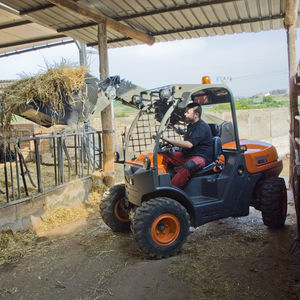

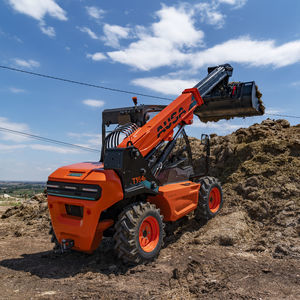

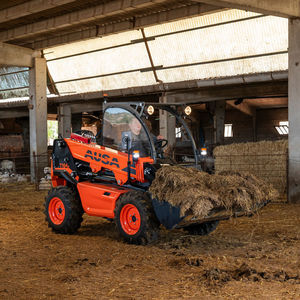

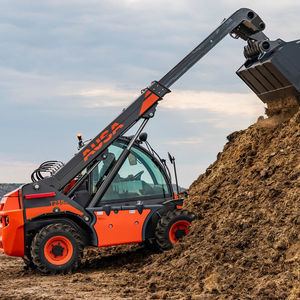

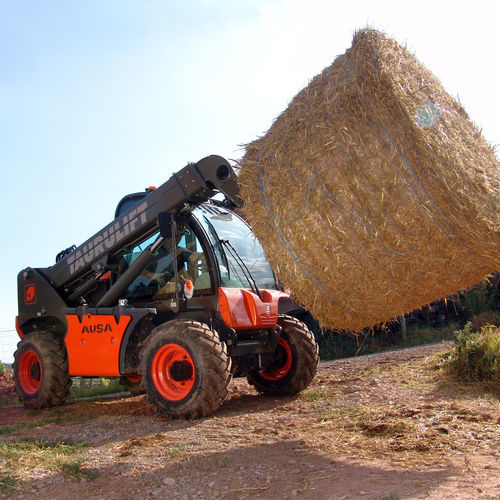

With a payload of 2000 kg (3,900 lb) and a lift height of 4.2 metres (13.8 ft), the T204H is a compact and advanced telescopic handler in its class. From the interior digital display, the operator can control any part of the telehandler and access the diagnostics menu and maintenance parameters quickly and efficiently. The machine adapts easily to varied terrain thanks to its 4x4x4 traction and three steering modes: front-wheel, four-wheel and crab mode. Hydraulic functions and quick-connect couplings expand its applications and accessory options. The cab is designed to be spacious and functional; the boom placement provides 360° visibility for a safer work environment.

Key advantages / possibilities

• Compactness
• 360º visibility
• Design
• Onboard diagnostics
• Easy to maintain
• Tilting cab

Driving position
Semi-closed ROPS/FOPS cab with front, rear and upper windscreens (standard)
Tilting cab with assisted lift (standard)
Closed ROPS/FOPS cab with heating (optional)
Closed ROPS/FOPS cab with heating and air conditioning (optional)

Couplers
AUSA mechanical coupler (standard)
Universal hydraulic quick coupler with 5th hydraulic line (optional)
EURO8 hydraulic quick coupler with 5th hydraulic line (optional)

Safety
Seat belt with fasten sensor (standard)
Seat with operator's presence sensor (standard)
LED rotating beacon (standard)
Acoustic warning for reverse gear (standard)
Emergency stop (standard)
Load level indicator (standard)
Overload locking system with 60-second deactivation push-button (standard)
Windscreen protective grill (optional)

Lighting and driving
Road lights (optional)
Front working lights (standard)
Rear LED working light (optional)
Rear-view mirror and right-side panoramic rear-view mirror (standard)

Comfort
Adjustable ergonomic seat (standard)
All-in-one joystick (standard)
Inverted joystick functions (optional)

Advanced equipment
Hydrostatic transmission (standard)
Limited-slip differential on the front axle (standard)
Front-wheel, four-wheel and crab steering modes (standard)
Inching pedal (standard)
Digital display (standard)
AUSAnow fleet manager (optional)

Forks & implements
1,200 mm forks (standard)
1,050 mm fork carriage (standard)
1,200 mm load rest (optional)
Built-in FEM II side shifter with 1,200 mm load rest (optional)
Two-hand control for locking/unlocking attachments (standard)
600-litre and 700-litre shovels, 400-litre 4x1 multi-function shovel (various availability)

Accessories
4th auxiliary hydraulic line (standard)
5th auxiliary hydraulic line (optional)
Auxiliary hydraulic line with continuous flow (optional)
Car radio (optional)
Waterproof document holder (optional)
Water separator diesel filter (standard)
Air filter with cyclone pre-filter (optional)
Biodegradable hydraulic oil (optional)
Towing ball with power socket (optional)

Tyres & parts
All-terrain SSL tyres 27x10-12 (available option)
1,000 h maintenance kit, spare wheel (parts available)

Technical data — General
Load capacity: 2000 kg
Load capacity at maximum height: 1000 kg
Empty weight: 4290 kg
Transmission: Hydrostatic
Maximum lift: 4200 mm
Maximum lift under maximum load: 3600 mm
Maximum reach: 2262 mm
Maximum load at maximum reach: 1000 kg

Technical data — Engine
Brand: Kubota
Model: D1803-CR-T-E5B
Power: 32.8 kW
Torque: 150.5 @ 1500
No. of cylinders: 3
Emissions: Stage V - EPA Tier 4f
Noise level (LwA): 104 dB(A)

Technical data — Driving
Max. speed: 20 km/h
Maximum gradient: 42 %
External turning radius: 3042 mm
Steering modes: Two-wheel front steer, four-wheel and crab
Traction: 4x4x4
Tyres (spec): 10/75-15.3

Technical data — Hydraulics & tanks
Flow rate: 51.8 l/min
Working pressure: 240 bar
Fuel tank capacity: 65 l
Hydraulic system tank capacity: 70 l

Brakes
Service: Hydraulic, disc
Parking: Mechanical

Characteristics / technical specifications

• Model: T204H
• Brand: AUSA
• Engine: Kubota D1803-CR-T-E5B — 32.8 kW, 3 cylinders, Stage V
• Load capacity: 2000 kg (1,000 kg at max height/reach)
• Maximum lift: 4,200 mm (3,600 mm under maximum load)
• Maximum reach: 2,262 mm
• Empty weight: 4,290 kg
• Transmission: Hydrostatic; traction 4x4x4; steering modes: front-wheel, four-wheel, crab
• Hydraulic flow: 51.8 l/min — working pressure 240 bar
• Fuel tank: 65 l — Hydraulic tank: 70 l
• Max. speed: 20 km/h — Maximum gradient: 42%
• Standard safety: seat belt sensor, operator presence sensor, emergency stop, load level indicator, overload locking system
