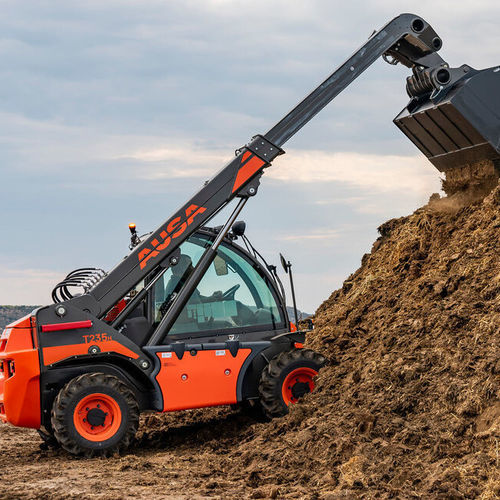

Agricultural telehandler T235H

Overview
The AUSA T235H is a compact telescopic handler offering a nominal load capacity of 2,300 kg and a maximum lift height of 5,000 mm. The operator interface integrates a digital display with onboard diagnostics and maintenance parameters for efficient monitoring. The side-mounted boom and tilting cab deliver a spacious, ergonomic driving position while keeping overall width low. 4x4x4 traction and three selectable steering modes adapt the machine to varied terrains and confined sites.

Key features

• Nominal load 2,300 kg
• 360° visibility
• Tilting cab with assisted lift
• Hydrostatic transmission
• 4x4x4 traction and three steering modes
• Onboard digital diagnostics

Technical data — General
Load capacity: 2300 kg
Load capacity at maximum height: 1300 kg
Empty weight: 4790 kg
Transmission: Hydrostatic
Maximum lift: 5000 mm
Maximum lift under maximum load: 4300 mm
Maximum reach: 2350 mm
Maximum load at maximum reach: 900 kg

Technical data — Engine
Brand: Kubota
Model: D1803-CR-T-E5B
Power: 32.8 kW
Torque: 150.5 @ 1500 rpm
No. of cylinders: 3
Emissions: Stage V - EPA Tier 4f
Noise level (LwA): 104 dB(A)

Technical data — Driving
Max. speed: 20 km/h
Maximum gradient: 42 %
External turning radius: 3042 mm
Steering modes: Two-wheel front steer, four-wheel and crab
Traction: 4x4x4
Tyres: 10/75-15.3

Technical data — Hydraulic system
Flow rate: 51.8 l/min
Working pressure: 240 bar

Technical data — Tank capacity
Fuel: 65 l
Hydraulic system: 70 l

Technical data — Brakes
Service: Hydraulic, disc
Parking: Mechanical

Equipment
Driving position
Semi-closed ROPS/FOPS cab with front, rear and upper windscreens: Standard
Closed ROPS/FOPS cab with heating: Optional
Closed ROPS/FOPS cab with heating and air conditioning: Optional
Tilting cab with assisted lift: Standard

Couplers
AUSA mechanical coupler: Standard
Universal hydraulic quick coupler with 5th hydraulic line: Optional
EURO8 hydraulic quick coupler with 5th hydraulic line: Optional

Safety
Seat belt with fasten sensor: Standard
Seat with operator's presence sensor: Standard
LED rotating beacon: Standard
Acoustic warning for reverse gear: Standard
Emergency stop: Standard
Load level indicator: Standard
Overload locking system with 60-second deactivation push-button: Standard
Windscreen protective grill: Optional

Lighting and driving
Road lights: Optional
Front working lights: Standard
Rear LED working light: Optional
Rear-view mirror: Standard
Right-side panoramic rear-view mirror: Standard

Comfort
Adjustable ergonomic seat: Standard
All-in-one joystick: Standard
Inverted joystick functions: Optional

Advanced equipment
Hydrostatic transmission: Standard
Limited-slip differential on the front axle: Standard
Front-wheel, four-wheel and crab steering modes: Standard
Inching pedal: Standard
Digital display: Standard
AUSAnow fleet manager: Optional

Forks
1,200 mm forks: Standard
1,050 mm fork carriage: Standard
1,200 mm load rest: Optional
Built-in FEM II side shifter with 1,200 mm load rest: Optional

Implements
Two-hand control for locking and unlocking attachments: Standard
600-litre shovel: Optional
700-litre shovel: Optional
400-litre 4x1 multi-function shovel: Optional

Accessories
4th auxiliary hydraulic line: Standard
5th auxiliary hydraulic line: Optional
Auxiliary hydraulic line with continuous flow: Optional
Car radio: Optional
Waterproof document holder: Optional
Water separator diesel filter: Standard
Air filter with cyclone pre-filter: Optional
Biodegradable hydraulic oil: Optional
Engine block heater: Optional
Towing ball with power socket: Optional

Parts
1,000 h maintenance kit: Optional
Spare wheel: Optional

Technical specifications

• Load capacity (nominal): 2300 kg
• Lift height (max): 5000 mm
• Lift under max load: 4300 mm
• Reach (max): 2350 mm
• Engine: Kubota D1803-CR-T-E5B — 32.8 kW, 3 cylinders, Stage V
• Transmission: Hydrostatic
• Traction: 4x4x4
• Max speed: 20 km/h
• Fuel tank: 65 l; Hydraulic tank: 70 l
• Hydraulic flow: 51.8 l/min at 240 bar
• Empty weight: 4790 kg
• Tyres: 10/75-15.3
