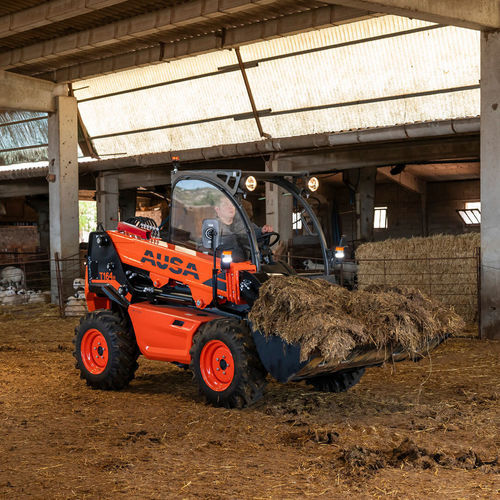

Agricultural telehandler T164H

Overview
The T164H is a compact telescopic handler for confined-site operations. It features a rated lift capacity of 1,600 kg and a maximum lift height of 4,000 mm. Rear-wheel steering and compact dimensions provide a reduced turning radius; the machine delivers 40% gradeability and 4x4 traction for off-road tasks. Suitable for construction, agriculture and landscaping applications.

Key specifications — General
Rated capacity: 1,600 kg
Rated capacity at max height: 1,600 kg
Tare weight: 3,370 kg
Transmission: Hydrostatic
Max lift height: 4,000 mm
Max lift at rated load: 3,400 mm
Max reach: 1,740 mm
Rated load at max reach: 600 kg

Engine
Make: Kubota
Model: V1505-E4B
Power: 18.5 kW
Torque: 92.6 Nm @ 1,700 rpm
Cylinders: 4
Emissions: Stage V / EPA Tier 4
Sound level (LwA): 101 dB(A)

Drive and performance
Top speed: 20 km/h
Gradeability: 40 %
Turning radius (outer): 3,440 mm
Steering modes: Rear
Traction: 4X4 FullGrip ®
Tyres: 10/75-15.3

Hydraulic system
Flow: 29 l/min
Working pressure: 210 bar

Capacities
Fuel tank: 55 l
Hydraulic tank: 35 l

Brakes
Service: Hydrostatic with parking hold
Parking: Negative

Equipment
Driving position

• Open ROPS/FOPS canopy (Standard)
• Semi-closed ROPS/FOPS cab with front, rear and roof windows (Optional)
• Closed ROPS/FOPS cab with heating (Optional)

Couplers

• Universal mechanical coupler (Standard)
• Universal hydraulic quick coupler with 5th hydraulic line (Optional)
• EURO8 hydraulic quick coupler with 5th hydraulic line (Optional)

Safety

• Seat belt with fasten sensor (Standard)
• Operator presence seat sensor (Standard)
• LED rotating beacon (Standard)
• Reverse warning audible (Standard)
• Emergency stop (Standard)
• Negative parking brake (Standard)
• Load level indicator (Standard)
• Overload lock with 60 s deactivation push-button (Standard)
• Joystick lock switch (Optional)
• Windscreen protective grill (Optional)

Lighting and driving

• Road lights (Optional)
• Front (2) and rear (1) work lights (Optional)
• Rear-view mirror (Standard)
• Right-side panoramic mirror (Optional)

Comfort

• Adjustable ergonomic seat (Standard)
• All-in-one joystick (Standard)
• Inverted joystick functions (Optional)

Advanced equipment

• Hydrostatic transmission (Standard)
• Second-generation FullGrip® (4WD) (Standard)
• AUSAnow fleet manager (Optional)

Forks

• 1,000 mm forks (Standard)
• 1,200 mm forks (Optional)
• 1,050 mm fork carriage (Standard)
• 1,200 mm load rest (Optional)
• Built-in FEM II side shifter with 1,200 mm load rest (Optional)

Implements

• Two-hand control for locking/unlocking attachments (Standard)
• 420-litre bucket (Optional)

Accessories

• 4th auxiliary hydraulic line (Standard)
• 5th auxiliary hydraulic line (Optional)
• Auxiliary line with continuous flow (Optional)
• Reverse warning disable switch (Optional)
• Car radio (Optional)
• USB connector (Optional)
• Waterproof document holder (Standard)
• Diesel water separator filter (Optional)
• Biodegradable hydraulic oil (Optional)
• Towing ball (Optional)
• Trailer power socket (Optional)

Tyres

• Turf tyres 10-16.5\" (Optional)

Parts

• 1,000 h maintenance kit (Optional)
• Spare wheel (Optional)

Features / technical specifications

• Rated lift capacity: 1,600 kg
• Max lift height: 4,000 mm
• Max lift at rated load: 3,400 mm
• Max reach: 1,740 mm
• Rated load at max reach: 600 kg
• Tare weight: 3,370 kg
• Engine: Kubota V1505-E4B, 18.5 kW, 4 cylinders, Stage V
• Transmission: Hydrostatic
• Top speed: 20 km/h
• Gradeability: 40 %
• Traction: 4X4 FullGrip ®
• Hydraulic flow / pressure: 29 l/min — 210 bar
• Fuel / hydraulic tank capacity: 55 l — 35 l
• Tyres: 10/75-15.3
