Semi-automatic tray filler XL

Overview

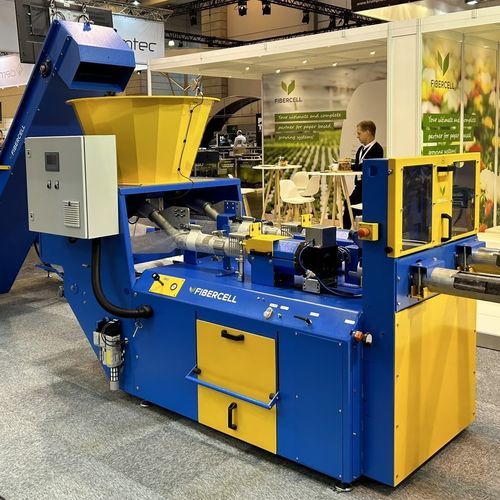

The 2-Row Semi-Automatic XL FiberCell filler combines two independent filling lines in a single machine. Each pipeline operates independently. Features include a removable vacuum box for simplified cleaning, an ergonomic working height, and adjustable plug density and air content. The XL model adds remote access and an automatic peat level sensor, plus a color touch screen for configuration.

Operational Benefits & Key Features

• Available in configurations to match holder types and nursery production rates.
• Control box with color touch panel for straightforward adjustments.
• Remote access for diagnostics and configuration.
• Automatic communication between mixer and hopper for continuous media feed.
• Supports mixing and filling of various substrate components (peat, coir, soil mixes).
• Removable vacuum box for easy cleaning and ergonomic access.
• Quick-change cutting saws for reduced downtime.
• Fast, accurate placement of FiberCells into holders to optimize planting operations.

Product Leaflets

• 2-Row Semi-Automatic XL FiberCell Filling Machine - English
• 2-Row Semi-Automatic XL FiberCell Filling Machine - Spanish
• 2-Row Semi-Automatic XL FiberCell Filling Machine - Portuguese
• 2-Row Semi-Automatic XL FiberCell Filling Machine - Indonesian

Technical specifications

• Dimensions (LxWxH) mm: Approx. 3400 x 1550 x 2450
• Weight (kg): 1200
• Capacity: Up to 3000 cells/hour (depending on cell length, diameter and substrate)
• Cell diameter (mm): Ø90, 100 and 120
• Cell length (mm): Adjustable
• Standard power supply V/Hz/Amps: 3x400V 50/60 Hz, 16A
• Compressed air consumption: 600 liters/minute
• Air pressure: 6 Bar
